Server Motherboard X11SPW-TF STD
Server Motherboard X11SPW-TF STD

Server Motherboard X11SPW-TF STD

●Intel C622 server chipset with LGA3647-3 Intel Xeon Scalable processor support for high-performance computing.
●6 × DDR4 ECC RDIMM slots, up to 640 GB, ideal for virtualization and data-intensive applications.
●Supports DDR4 3200 / 2666 / 2400 / 2133 / 1866 MHz memory.
SATA 3.0 and NVMe M.2 PCIe ×4 storage interfaces for capacity and speed.
●PCIe ×16, ×4, and ×1 expansion slots supporting GPUs and various add-on cards.
●Onboard BMC with IPMI for remote management, monitoring, and maintenance.
●8-phase power design and 12-layer PCB for stable operation under sustained high loads.
●Wide operating temperature range of –10°C to 60°C; compatible with Windows 10 / 11 and Linux.

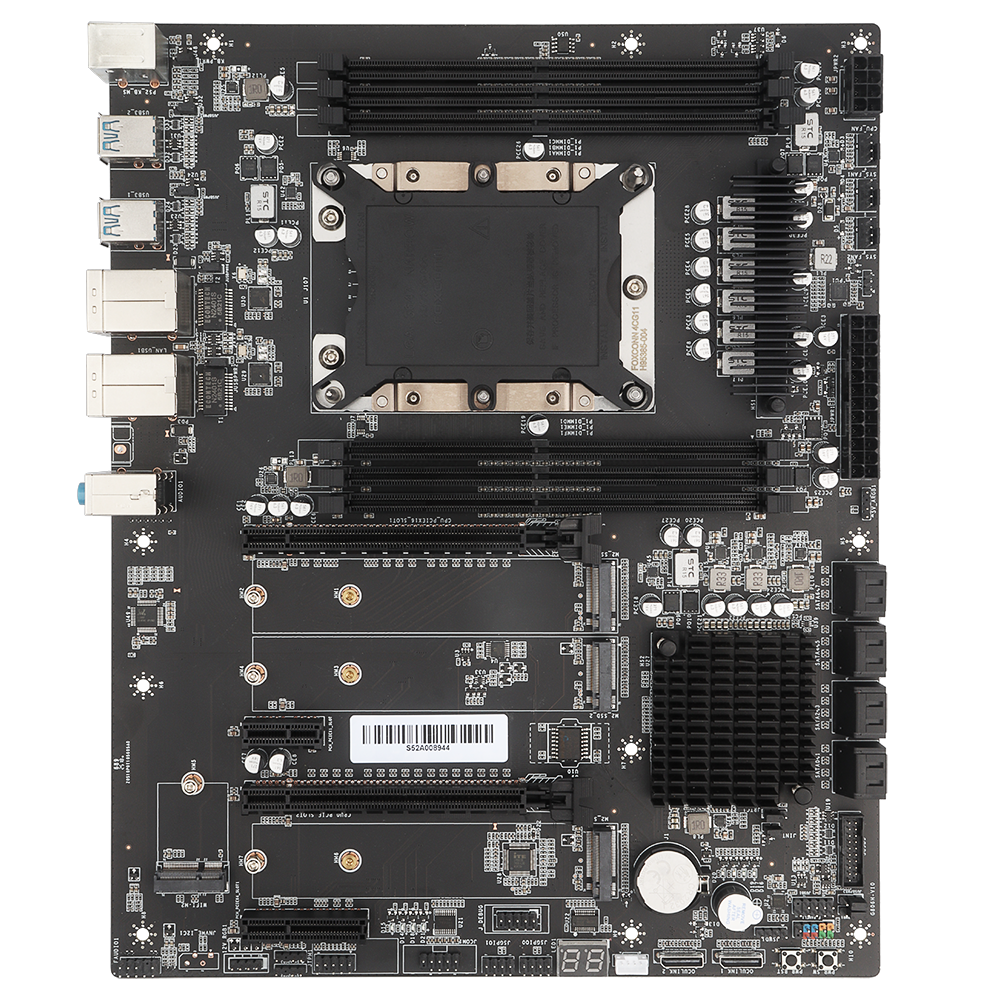

The X11SPW-TF STD is an ATX server motherboard built on the Intel C622 server-class chipset, supporting Intel Xeon Scalable processors on the LGA3647-3 platform. It delivers strong computing performance while maintaining a high level of system integration and space efficiency. With support for high-speed ECC memory, multiple NVMe storage interfaces, and PCIe expansion capability, and featuring integrated BMC remote management, it is well suited for deployment in enterprise servers, edge computing, communication equipment, industrial control systems, and space-constrained rack environments.


Specifications



Chipset

Intel C622 server-class chipset

CPU Socket

Supports LGA3647-3 platform processors

Memory Slots

6 × 288-pin DDR4 ECC RDIMM slots (capacity per DIMM dependent on module)

Memory Specification

Supports DDR4 3200 / 2666 / 2400 / 2133 / 1866 MHz, Maximum total capacity up to 640 GB (Actual speed and capacity depend on CPU and memory modules)

Storage Interfaces

8 × SATA 3.0 ports

3 × NVMe M.2 2280 slots

Expansion Slots

2 × PCIe ×16 slots

1 × PCIe ×1 slot

1 × PCIe ×4 slot

M.2 Slots

2 × M.2 2280 (NVMe, PCIe ×4)

Audio Codec

Realtek ALC 6-channel HD Audio, Front audio and microphone support

LAN Controllers

2 × Intel® i226-V Gigabit Ethernet ports

1 × dedicated BMC remote management port

Power Connectors

1 × 24-pin ATX power connector

2 × 8-pin ATX 12V power connectors

Fan Connectors

2 × system fan headers

1 × CPU fan header

Power Design

8-phase power architecture

PCB Layers

12-layer

Motherboard Size / Form Factor

ATX, 305 mm × 244 mm

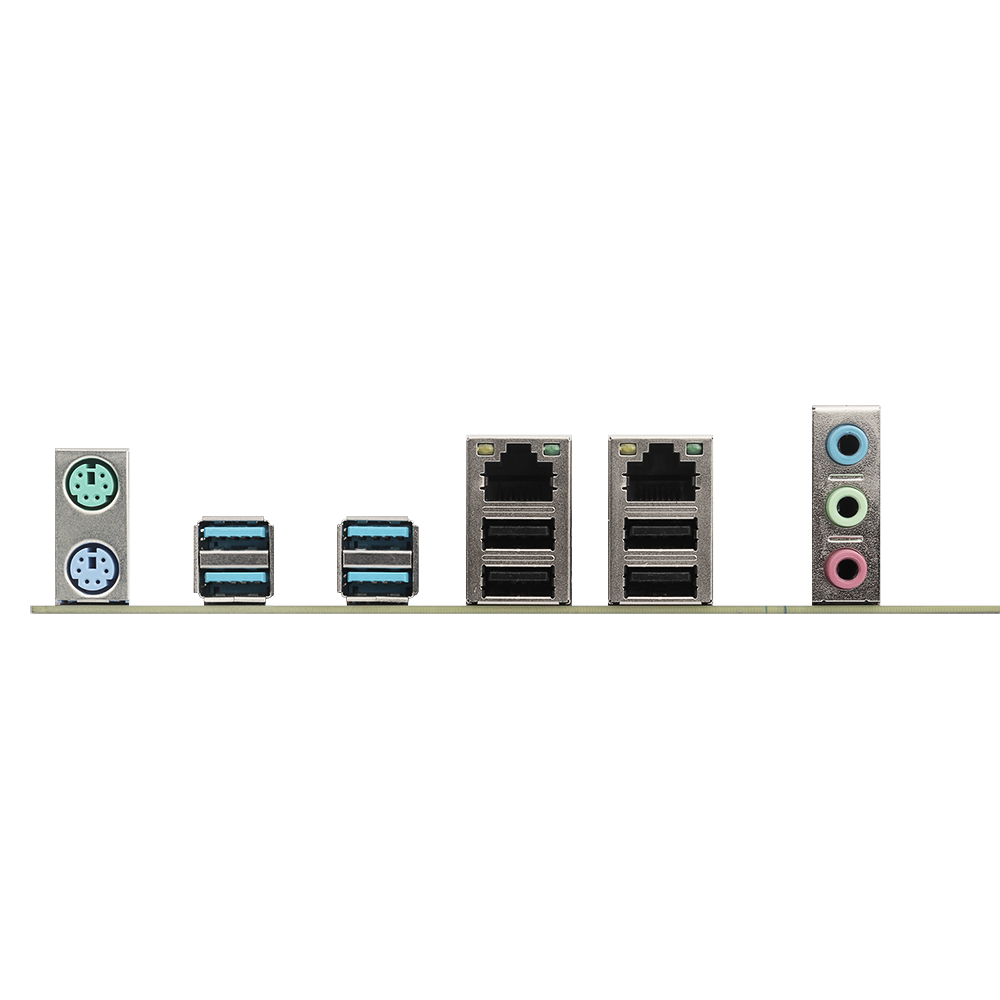

Rear I/O Panel

4 × USB 2.0 ports

4 × USB 3.0 ports

2 × RJ45 2.5G LAN ports

1 × 3-in-1 audio jack (Line-in / Line-out / Mic-in)

Front I/O Headers

1 × front audio header

1 × USB 3.0 header (supports 2 × USB 3.0 ports)

2 × USB 2.0 headers (supports 4 × USB 2.0 ports)

1 × COM header

1 × TPM header

2 × GPIO headers

1 × front panel (F_PANEL) header

8 × system fan headers

2 × CPU fan headers

Operating Temperature

–10°C to 60°C (wide-temperature support)

OS Support

Windows 10 / Windows® 11 / Linux

System Management

Power-on after AC loss

Scheduled power-on

Wake-on-LAN (WOL)

PXE boot

Intelligent CPU fan speed control

AMI UEFI BIOS
