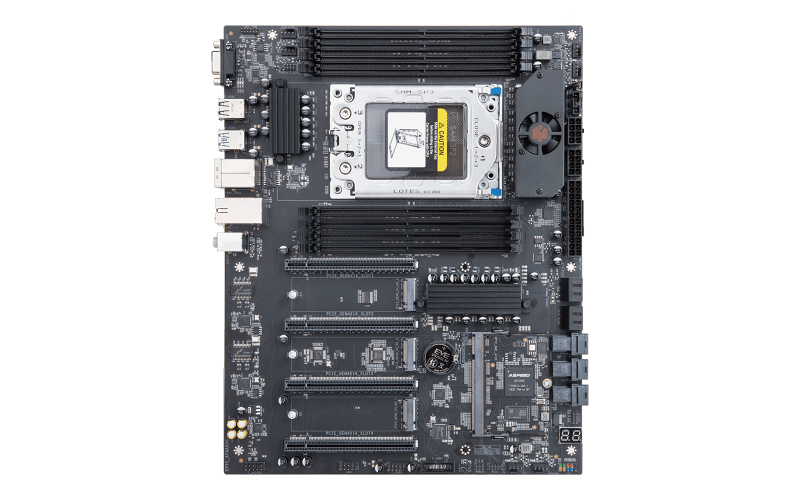

Server Motherboard H12SSW-NT STD
Server Motherboard H12SSW-NT STD

Server Motherboard H12SSW-NT STD

● Supports AMD EPYC 7002/7003 CPUs for high-core, high-bandwidth computing in cloud and AI workloads.
● 8 DDR4 DIMM slots with up to 2TB Registered ECC memory (2133–3200 MHz) ensure stability and data integrity.
● 5 × PCIe 3.0/4.0 x16 slots support GPUs, AI accelerators, and capture cards for high-throughput tasks.
● 4 × SATA 3.0 and 3 × Mini-SAS ports enable fast SSD and enterprise storage expansion.
● Rich USB options: USB 2.0, USB 3.2, 19-pin USB 3.0, and 9-pin USB 2.0.
● Includes VGA output and IPMI port for remote management.
● Equipped with dual 2.5GbE LAN for reliable high-speed networking.
● Premium power design and active cooling ensure 24/7 stability with full IPMI support.
● Supports optional IPMI module and customizable BIOS or interfaces for project needs.

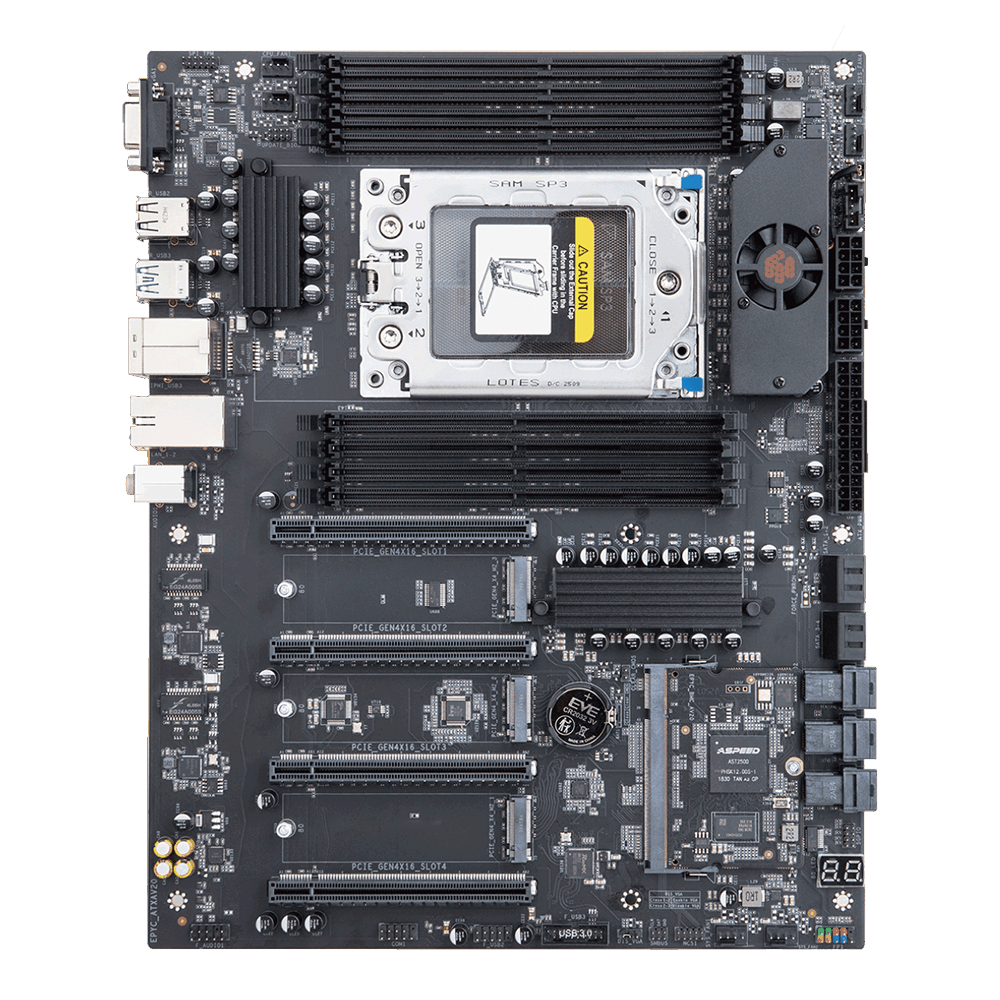

The H12SSW-NT STD is a high-performance, highly expandable server-grade motherboard based on the AMD SP3 socket, supporting AMD EPYC™ 7002 and 7003 series processors. It is purpose-built for high-performance computing, data centers, AI inference, virtualization platforms, and high-density storage applications.


Manufactured with carefully selected industrial-grade components, the board is designed to operate reliably in demanding 24/7 environments. With excellent memory scalability and a rich set of I/O interfaces, the H12SSW-NT STD is an ideal platform for enterprise servers and industrial computing systems.

Specifications



Chipset

/

CPU Socket

Compatible with AMD EPYC 7002 / 7003 processors

Memory Slots

8 × 288-pin DDR4 DIMM slots (up to 32GB per module)

Memory Type

Supports dual-channel DDR4 3200/2933/2666/2400/2133 MHz (actual speed depends on CPU & module); up to 2TB total capacity

Storage Interfaces

4 × SATA 3.0 ports

3 × Mini-SAS (SATA) ports (supports SATA×4 or PCIe 3.0/4.0 x4)

Expansion Slots

5 × PCIe 3.0/4.0 x16

1 × IPMI slot

M.2 Slots

3 × M.2 2280 (NVMe, PCIe x1, compliant with 2.0 spec)

Audio

Realtek ALC897 HD audio

Network

2 × Intel I226-V 2.5GbE ports

1 × IPMI remote management port (requires BMC module)

Power Connectors

24-pin + 8-pin ATX power connectors

Fan Headers

6 × 4-pin CPU fan headers (CFAN1)

2 × 3-pin system fan headers (SFAN1)

Power Design

14-phase power delivery

PCB Layers

14 layers

Motherboard Size / Form Factor

305mm × 245mm (ATX)

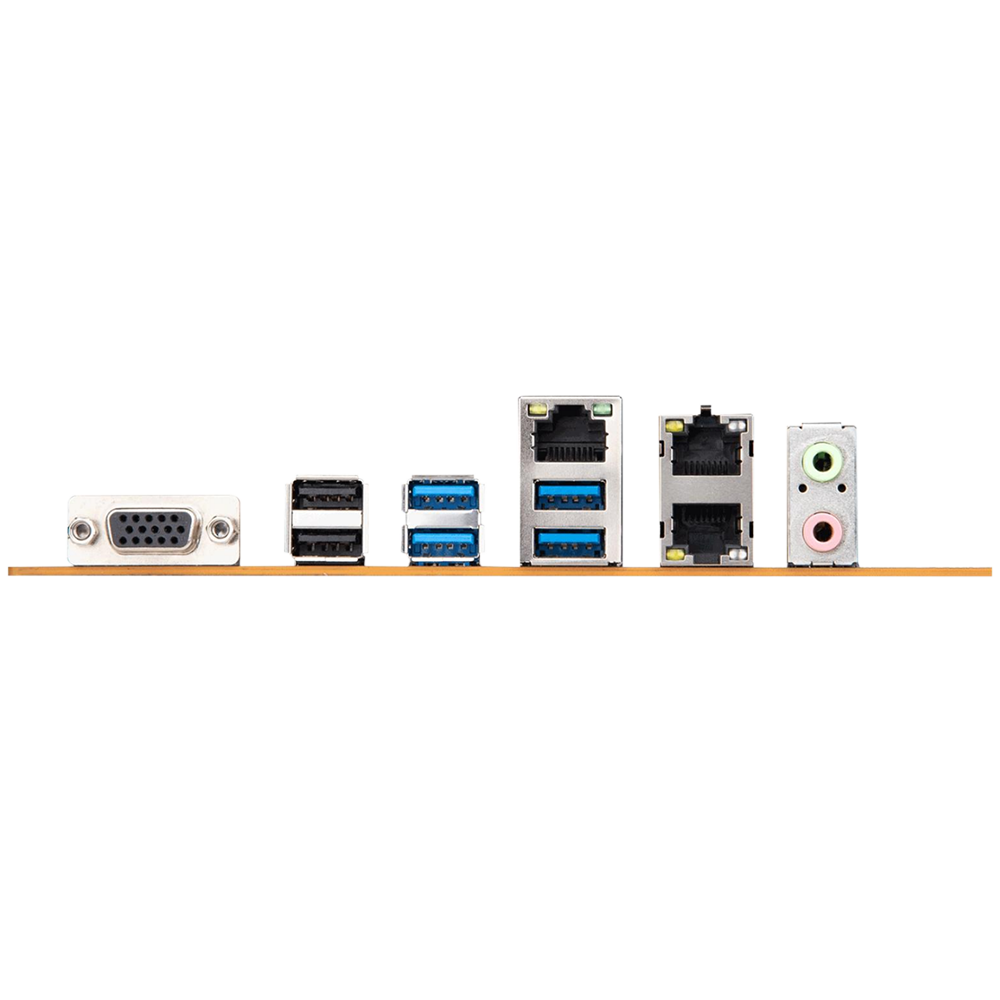

Rear I/O Panel

2 × USB 2.0

4 × USB 3.2

1 × VGA output

2 × RJ45 2.5GbE

1 × IPMI port

1 × audio output

Front I/O Headers

1 × front audio header

1 × 19-pin USB 3.0 header

1 × 9-pin USB 2.0 header

1 × 9-pin COM header

1 × 9-pin front panel header (JFP1)

6 × 4-pin system fan headers

Operating Temperature

-10°C ~ 60°C wide-temperature support

OS Support

Windows 10 / Windows 11 / Linux

Supported Features

Auto power-on / scheduled power-on / Wake-on-LAN

PXE boot (IPv4/IPv6)

Smart CPU fan control

AMI UEFI BIOS
