Workstation Motherboard C612-PRO-V2
Workstation Motherboard C612-PRO-V2

Workstation Motherboard C612-PRO-V2

●Intel C612 chipset with support for Intel® Xeon E5 V3 / V4 processors, delivering reliable workstation-class computing performance
●8 × DDR4 ECC memory slots supporting DDR4 2666 / 2400 / 2133 MHz, with a maximum capacity of up to 256GB
●4 × PCIe 3.0 x16 expansion slots, supporting multi-GPU configurations and high-bandwidth expansion cards
●Integrated NVMe M.2, U.2, and 10 × SATA 3.0 interfaces to meet both high-speed and large-capacity storage requirements
●Supports PCIe M.2 storage and M.2 WiFi (NGFF) modules for flexible storage and wireless expansion
●6-phase power delivery design ensures stable operation under sustained high workloads
●Onboard Realtek ALC897 high-definition audio codec supporting multi-channel audio output
●Equipped with Intel I211 and Realtek RTL8111H Gigabit Ethernet controllers for reliable wired network connectivity
●Supports Windows 7 / 10 / 11 operating systems and features AMI UEFI BIOS for broad system compatibility

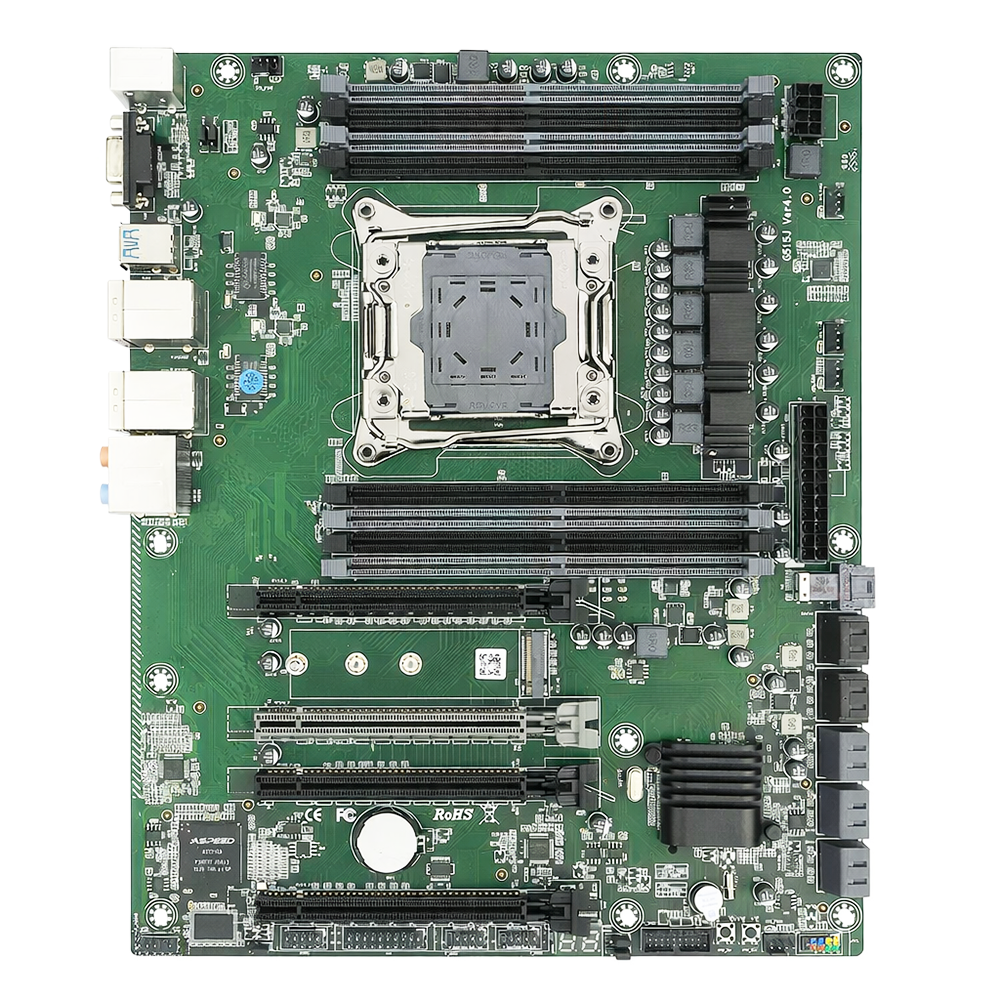

The C612-PRO-V2 is an ATX form factor graphics workstation motherboard built on the Intel C612 chipset. It supports Intel Xeon E5 V3 / V4 series processors on the LGA2011 platform, delivering stable multi-core performance with ECC memory support.


Featuring multiple PCIe x16 expansion slots, high-speed NVMe storage, and comprehensive I/O connectivity, the C612-PRO-V2 is well suited for professional graphics workstations, image processing, CAD/CAM, 3D modeling, content creation, and engineering design applications. It achieves an excellent balance between performance, expandability, and system stability.


Specifications



Chipset

Intel C612

CPU Socket

Supports Intel LGA2011-3 processors

Memory Slots

8 × DDR4 memory slots, supporting server ECC memory

Memory Specification

Supports DDR4 1866 / 2133 / 2400 MHz (depending on CPU), up to 256GB (8 x 32GB)

Storage Interfaces

10 × SATA 3.0 (6Gbps)

1 × NVMe M.2 PCIe 3.0

1 × U.2

Expansion Slots

4 × PCIe 3.0 x16

M.2 Slots

1 × M.2 2280 NVMe PCIe 3.0 x4 (32Gbps)

1 × M.2 2280 NVMe PCIe 2.0 x4 (20Gbps)

1 × M.2 WiFi (NGFF) slot

Audio Codec

Realtek ALC897 HD Audio

LAN Controller

RTL8111H / Intel I211 Gigabit Ethernet

Power Connectors

24-pin ATX + 8-pin CPU power

Fan Connectors

1 × CPU_FAN header

2 × SYS_FAN headers

Power Design

6-phase power module

Motherboard Size / Form Factor

305 × 245 mm, ATX

Rear I/O Panel

1 × PS/2 keyboard/mouse

4 × USB 2.0

4 × USB 3.0

1 × RJ45 LAN

1 × 5-jack audio

1 × optical audio (integrated)

Front I/O Headers

2 × USB 2.0 headers (one controlled via jumper for WiFi/Bluetooth)

1 × USB 3.0 header

1 × Front audio header

1 × COM header

1 × Buzzer (SPK) header

1 × Onboard diagnostic card header

1 × Power/Reset header

OS Support

Windows 7 / Windows 10 / Windows 11

BIOS

AMIUEFIBIOS
