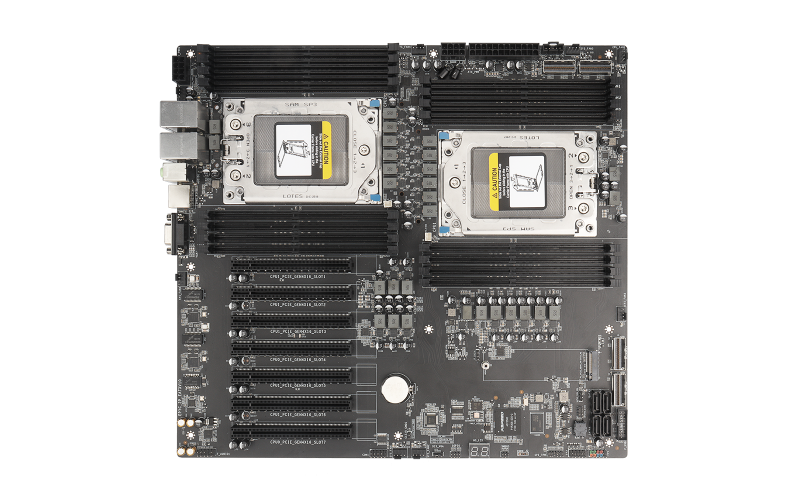

Server Motherboard H12DSi-N6 STD
Server Motherboard H12DSi-N6 STD

Server Motherboard H12DSi-N6 STD

● Dual AMD EPYC 7003 / 7002 processor support based on the AMD EPYC server chipset, delivering high-performance multi-core computing for compute-intensive workloads.
● 16 × DDR4 ECC RDIMM slots supporting up to 4TB memory capacity, ideal for large-scale data processing and virtualization.
● Flexible storage options with SATA 3.0, Slim SAS, and NVMe PCIe 4.0 M.2 interfaces for high-speed and high-capacity deployments.
● Extensive expansion with 7 × PCIe 4.0 x16 slots and 1 × PCIe 4.0 M.2 slot, supporting GPUs, RAID cards, and high-bandwidth accelerators.
● Integrated dual Gigabit Ethernet ports and dedicated BMC/IPMI management port for efficient networking and remote system control.
● Onboard ASPEED AST2600 BMC with IPMI and KVM support for real-time monitoring and simplified remote management.
● Server-grade power design and multi-layer PCB ensure stable 24/7 operation under heavy workloads.
● Operating temperature range of 10°C to 35°C, suitable for data center and industrial server environments.

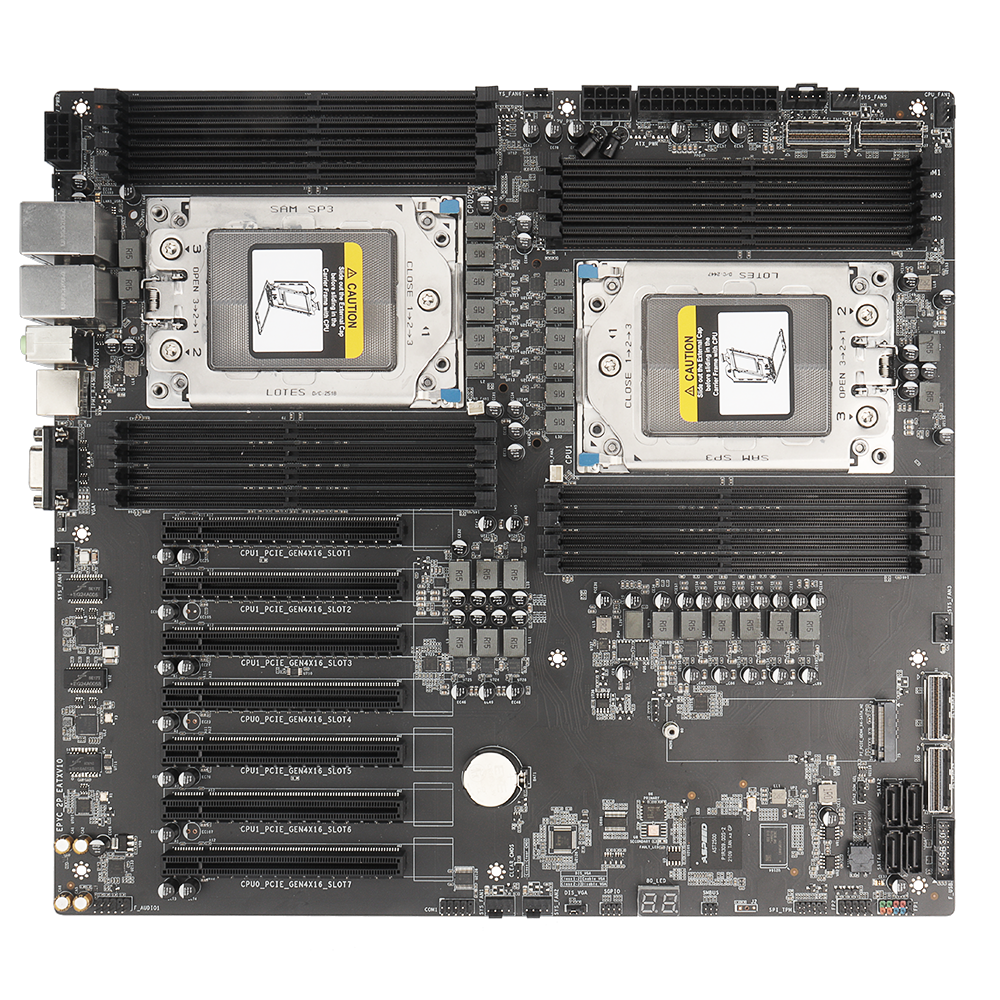

The H12DSi-N6 STD is an E-ATX dual-socket server motherboard built on the AMD EPYC server chipset. It supports AMD EPYC 7003 and 7002 series processors, and is compatible with EPYC 7003 processors featuring 3D V-Cache technology (BIOS version 2.3 or later required), enabling high core-count computing and large-capacity memory configurations.

The motherboard integrates high-speed PCIe 4.0 expansion, NVMe storage support, and BMC/IPMI remote management capabilities, delivering an optimal balance of performance, stability, and system maintainability. It is ideally suited for deployment in data centers, cloud computing infrastructures, virtualization servers, and high-performance industrial server applications.

Specifications



Chipset

AMD EPYC server chipset

CPU Socket

Dual AMD EPYC 7003 / 7002 processors

EPYC 7003 series with 3D V-Cache requires BIOS 2.3 or later

Memory Slots

16 × 288-pin DDR4 ECC RDIMM slots (capacity per module dependent on DIMM)

Memory Specification

Supports DDR4 3200 MHz ECC RDIMM, up to 4 TB total

8-channel memory bus; dual-CPU systems recommend balanced slot population

Storage Interfaces

4 × SATA 3.0 ports

4 × SLIM SAS ports

1 × NVMe M.2 2280 (PCIe 4.0 ×4)

Expansion Slots

7 × PCIe 4.0 ×16 slots

M.2 Slots

1 × PCIe 4.0 ×4 M.2 slot (2280)

Audio Codec

ASPEED AST2600 BMC with VGA output and 6-channel HD Audio

LAN Controllers

2 × Gigabit Ethernet ports

1 × dedicated BMC/IPMI management port

Power Connectors

1 × 24-pin ATX power connector

2 × 8-pin ATX 12V power connectors

Fan Connectors

8 × 4-pin PWM system fan headers

2 × CPU fan headers

Power Design

Server-grade stable power delivery

PCB Layers

Multi-layer PCB design

Motherboard Size / Form Factor

E-ATX, 330 mm × 305 mm

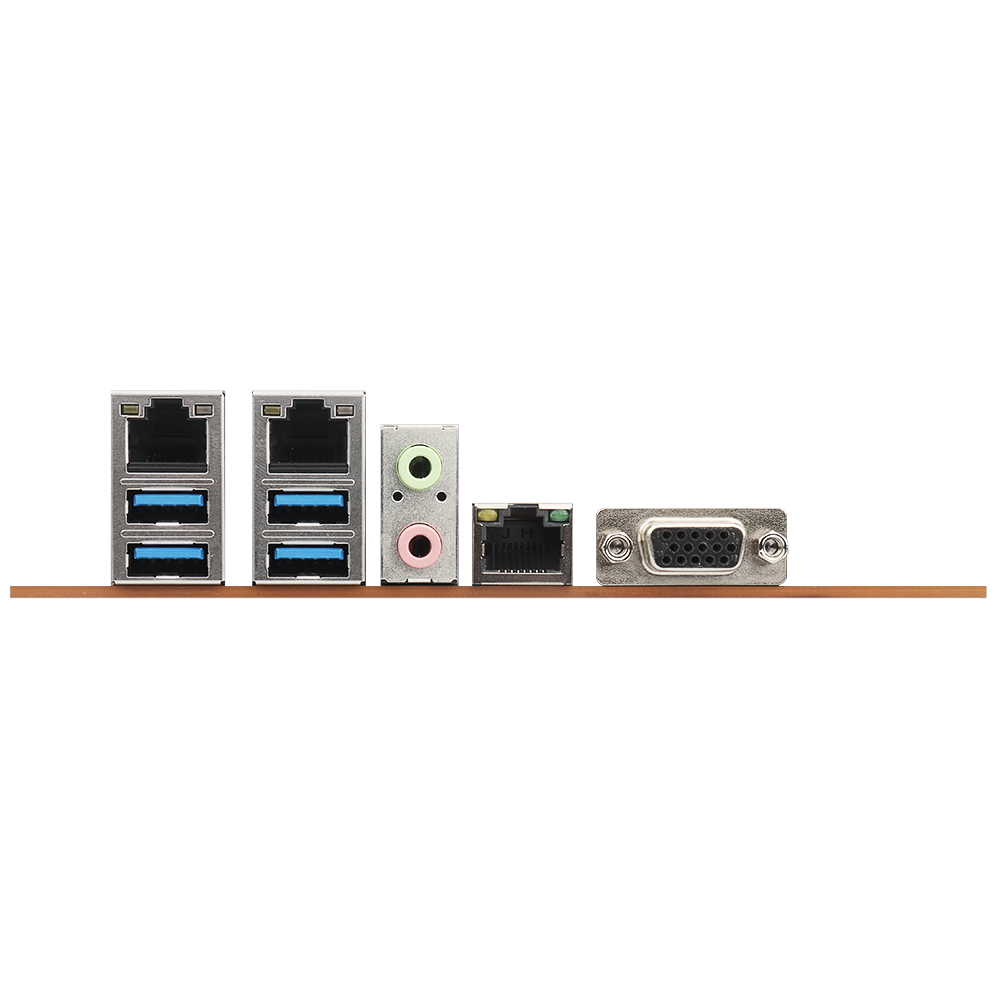

Rear I/O Panel

4 × USB 3.0 ports

1 × VGA output

1 × BMC/IPMI management port

2 × RJ45 Gigabit LAN ports

1 × audio jack

Front I/O Headers

1 × front audio header

1 × USB 3.0 header (supports 2 × USB 3.0 ports)

1 × COM header

1 × F_PANEL front panel header

6 × system fan headers

2 × CPU fan headers

Operating Temperature

Operating temperature: 10°C – 35°C, Storage temperature: –40°C – 70°C, Operating humidity: 8% – 90% (non-condensing), Non-operating humidity: 5% – 95% (non-condensing)

OS Support

Windows 10 / Windows 11 / Linux

System Management

Power-on after AC loss

Scheduled power-on

Wake-on-LAN (WOL)

PXE boot support

Intelligent CPU fan control

AMI UEFI BIOS / DMI 2.3 / ACPI 6.2 / SMBIOS 3.1.1

 IPMI 2.0 with KVM

Remote management support
