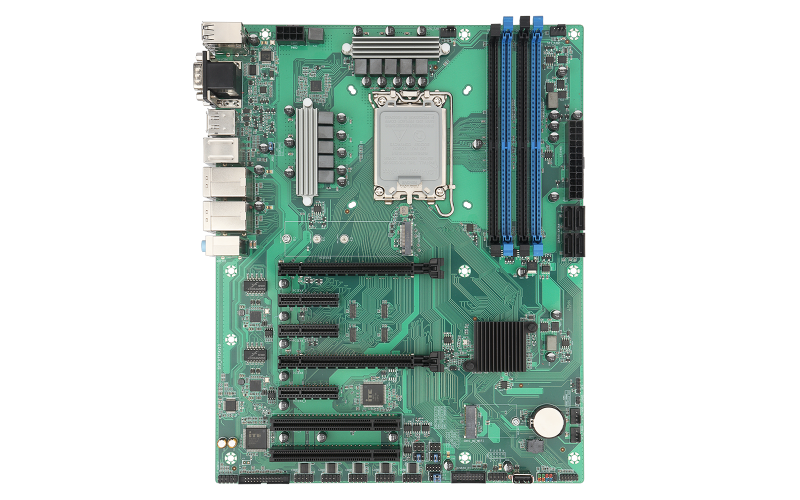

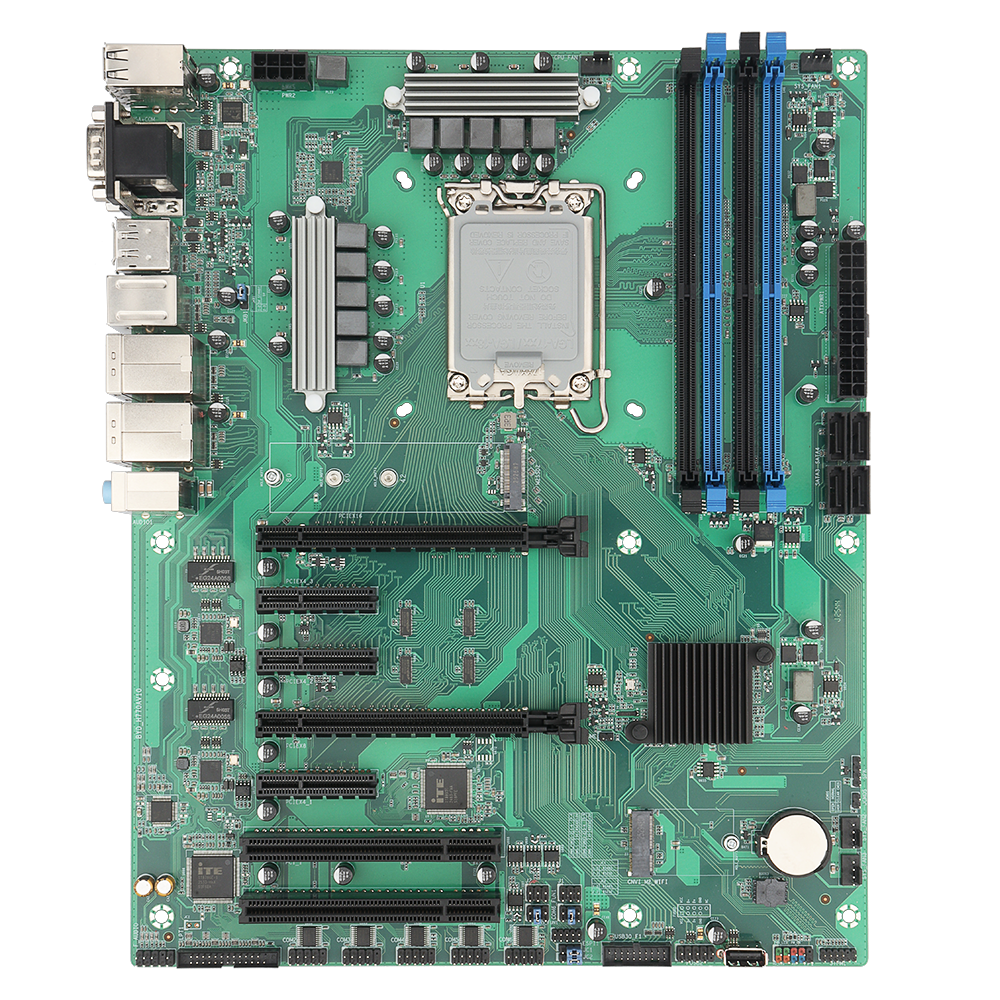

Workstation Motherboard H770-ATX
Workstation Motherboard H770-ATX

Workstation Motherboard H770-ATX

●Intel H770 chipset, supporting Intel 12th / 13th / 14th Gen Core i3 / i5 / i7 / i9, Pentium, and Celeron processors
●Dual-channel DDR4 memory support, up to 128GB
●Onboard Gigabit LAN for stable networking and broad compatibility
●4 × SATA 3.0 (6Gbps) storage interfaces
●1 × PCIe M.2 slot (2242 / 2260 / 2280), PCIe x4 Gen4 NVMe support
●Expansion bus with 2 × PCIe x16 slots and 3 × PCIe x4 slots
●1 × VGA, 1 × HDMI, and 1 × DisplayPort output, supporting independent triple-display output
●Industrial-grade materials and carefully selected components for long-term stable operation

The H770-ATX is a highly integrated industrial-grade motherboard based on the Intel H770 chipset. It supports the LGA1700 platform and delivers excellent computing performance and system stability. Designed for demanding industrial environments, it is well suited for automation control, digital signage, retail terminals, and a wide range of industrial equipment applications.


The motherboard features a triple-level ESD protection design and standard ATX power architecture, ensuring reliable and long-term operation. Equipped with DDR4 memory slots supporting up to 128GB, it meets the requirements of industrial systems for multitasking and high-speed data processing.

Specifications



Chipset:

Intel H770

CPU Socket

Intel 12th / 13th / 14th Gen Core™ i3 / i5 / i7 / Pentium / Celeron, LGA1700

Memory Slots

4 × 288-pin DDR4 UDIMM slots

Memory Specification

Support DDR4 UDIMM, up to 128GB

Storage Interfaces

4 × SATA 3.0 (6Gbps), RAID 0/1/5/10

1 × M.2 Key-M (2242/2260/2280, PCIe x4 Gen4 NVMe, default support for 2260)

Expansion Slots

2 × PCIe x16 (1 × PCIe x16 Gen4 or 2 × PCIe x8 Gen4)

3 × PCIe x4 (PCIe x4 Gen4)

2 × PCI

1 × M.2 Key-E (for Wi-Fi & BT)

Display Interfaces

1 × DP

1 × VGA

 1 × HDMI

Supports triple independent display output

Audio Codec

HDA standard

Rear panel: Mic-in, Line-in, Line-out

LAN Controllers

2 × 10/100/1000 Mbps Ethernet

Power Connectors

ATX power connector, supports S0, S1, S4, S5

Motherboard Size / Form Factor

305 × 244 mm, ATX

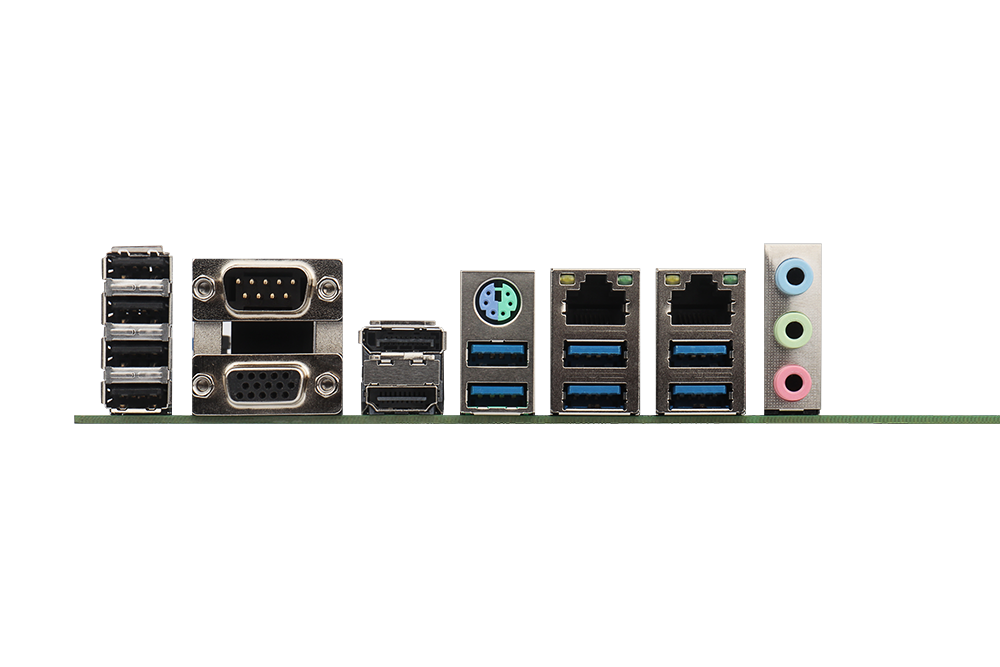

Rear & Front I/O

6 × COM (2 × RS232/422/485: COM1 external, COM2 onboard; 4 × RS232 onboard)

7 × USB 2.0 (1 external quad-port, 1 onboard Type-A, 1 × USB2.0 header)

6 × USB 3.0 (external)

1 × PS/2 keyboard/mouse

1 × 16-channel digital I/O (optional LPT)

1 × CPU fan header

3 × SYS fan headers

Operating Temperature

-10°C ~ 60°C, 5% ~ 95% RH (non-condensing)

Storage Environment

-20°C ~ 80°C, 5% ~ 95% RH (non-condensing)

Watchdog

255-level programmable seconds/minutes, supports timeout interrupt or system reset

ESD Protection

Level 3
