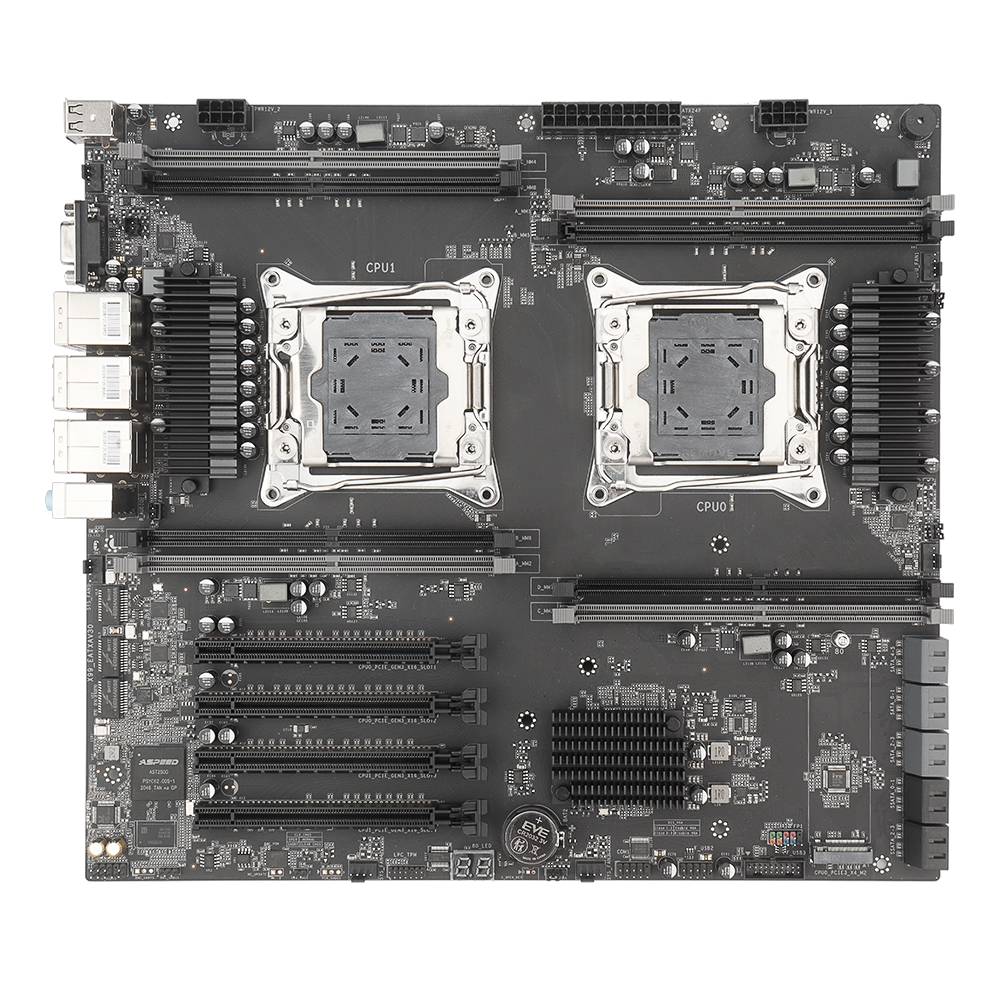

C612-DUO-PRO supports dual Intel LGA2011-R3 Haswell/Broadwell processors and is engineered to meet stringent workstation-grade standards. The motherboard is equipped with all-solid capacitors and an active cooling module integrated into the CPU power delivery circuitry, specifically designed for long-duration, high-load machine vision and image-processing environments. Delivering server-class performance and high availability, it meets the demanding requirements of advanced image-computing industries for data throughput and system stability.
Specifications |
|
|
Chipset | Intel® C612 |
CPU Socket | Supports dual Intel® LGA2011-R3 Haswell / Broadwell processors |
Memory Slots | 8-channel DDR4 |
Memory Specification | single DIMM up to DDR4-2400 MHz, up to 256GB |
Storage Interfaces | 1 × M.2 2280 PCIe 3.0 x4 4 × PCIe 3.0 x16 |
Expansion Slots | 1 × M.2 2280 NVMe PCIe 3.0 x4
4 × PCIe 3.0 x16
1 × PCIe 3.0 x4
2 × PCIe 3.0 x1 |
Audio Codec | Onboard 5.1-channel audio |
LAN Controllers | 2 × 2.5GbE / 1GbE / 100MbE BASE-T 1 × 100MbE / 10MbE BASE-T |
Power Connectors | 24-pin main power + 8-pin CPU power |
Fan Connectors | 2 × CPU_FAN (SIO controlled) 4 × SYS_FAN (BMC controlled) |
Power Design | 8+8-phase power |
PCB Layers | 8-layer |
Motherboard Size / Form Factor | 320 × 290 mm, EATX |
Rear I/O Panel | 1 × Front panel header
1 × F_USB3 header (supports 2 × USB3.0)
1 × F_USB2 header (supports 2 × USB2.0)
1 × COM1 header
4 × SYS_FAN headers
1 × DIS VGA header
1 × LPC TPM header
1 × BMC SMBus header
1 × F_AUDIO header
4 × FAN1-4 headers
2 × CPU_FAN headers
2 × 8-pin power connectors
1 × 24-pin power connector
10 × SATA data interfaces
1 × CLR CMOS header |
Front I/O Headers | 4 × USB2.0
4 × USB3.0
1 × VGA
1 × IPMI LAN (100MbE)
2 × LAN (2.5GbE)
1 × Audio (Line In, Line Out, Mic) |
OS Support | Windows 7 / 10 / 11 / Server 2016 / 2019 / 2022 / 2025 / Linux |
System Management | Onboard AST2500 BMC module supporting web-based remote management, monitoring voltage, fan speed, temperature, and CPU status, with optional remote KVM and serial redirection |
BIOS | AMI UEFI BIOS |
