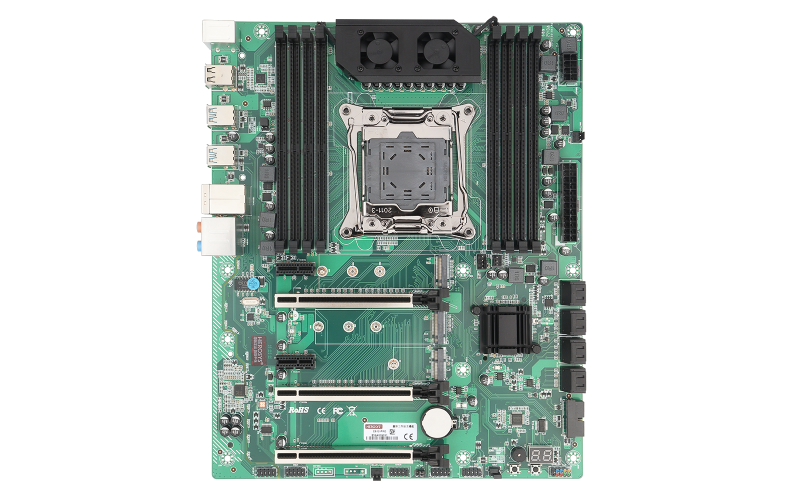

Workstation Motherboard C612-PRO
Workstation Motherboard C612-PRO

Workstation Motherboard C612-PRO

●Compatible with Intel LGA2011-3 processor platform
●Independent 6-phase power design for stable and reliable operation
●8× DDR4 memory slots supporting server-grade memory
●2× PCIe 3.0 x16 expansion slots, 1× PCIe 3.0 x4 slot, 2× PCIe 3.0 x1 slots
●1× M.2 2280 NVMe PCIe x4 3.0 (32Gbps), 1× M.2 2280 NVMe PCIe x4 2.0 (20Gbps), 1× M.2 Wi-Fi slot (NGFF)
●Onboard Realtek high-fidelity audio chipset and dual Gigabit network controllers (Realtek / Intel)
●1× PS/2 keyboard/mouse port, 4× USB 2.0 ports, 4× USB 3.0 ports, 1× LAN port, 1× 5-jack audio interface, 1× optical audio interface (integrated in the audio panel)
●4× SATA 3.0 6Gbps ports, 4× sSATA 3.0 6Gbps ports
●Thermodynamic structural design with an innovative active cooling system to effectively suppress heat buildup
●Onboard independent hardware diagnostic system for improved troubleshooting efficiency

This product supports the Intel LGA2011-3 processor platform and is engineered according to workstation-grade standards. The motherboard is equipped with all-solid capacitors and an active cooling module on the CPU power delivery circuit, purpose-built for machine vision and image-processing applications that require long-duration, high-load operation. With server-level performance and high availability, it features dual Gigabit and dual 10-Gigabit Ethernet ports to meet the strict data-transfer and stability requirements of advanced image-computing industries.


Specifications



Chipset

Intel® C612

CPU Socket

Supports Intel® LGA2011-3 processors

Memory Slots

8 × DDR4 memory slots, supporting server memory

Memory Specification

Supports DDR4 1866 / 2133 / 2400 MHz (depending on CPU), up to 256GB

Storage Interfaces

4 × SATA 3.0 (6Gbps), 4 × sSATA 3.0 (6Gbps)

Expansion Slots

2 × PCIe 3.0 x16

1 × PCIe 3.0 x4

2 × PCIe 3.0 x1

M.2 Slots

1 × M.2 2280 NVMe PCIe 3.0 x4 (32Gbps)

1 × M.2 2280 NVMe PCIe 2.0 x4 (20Gbps)

1 × M.2 WiFi (NGFF) slot

Audio Codec

Realtek ALC897 HD Audio

LAN Controller

RTL8111H / Intel I211 Gigabit Ethernet

Power Connectors

24-pin ATX + 8-pin CPU power

Fan Connectors

1 × CPU_FAN header

2 × SYS_FAN headers

Power Design

6-phase power module

Motherboard Size / Form Factor

300 × 244 mm, ATX

Rear I/O Panel

1 × PS/2 keyboard/mouse, 4 × USB 2.0, 4 × USB 3.0, 1 × RJ45 LAN, 1 × 5-jack audio, 1 × optical audio (integrated)

Front I/O Headers

2 × USB 2.0 headers (one controlled via jumper for WiFi/Bluetooth), 1 × USB 3.0 header, 1 × Front audio header, 1 × COM header, 1 × Buzzer (SPK) header, 1 × Onboard diagnostic card header, 1 × Power/Reset header

OS Support

Windows 7 / Windows 10 / Windows 11

BIOS

AMIUEFIBIOS
