Workstation Motherboard B560-ATX
Workstation Motherboard B560-ATX

Workstation Motherboard B560-ATX

●Supports AMD Ryzen™ 3000, 4000G, 5000, and 5000G series processors
●Dual-channel DDR4 memory support, up to 128GB
●Onboard Gigabit LAN for stable connectivity and broad compatibility
●4 × SATA 3.0 (6Gbps) storage interfaces
●1 × M.2 slot (2242 / 2260 / 2280) with PCIe® x4 Gen4 NVMe support
●1 × VGA, 1 × HDMI, and 1 × DisplayPort output, supporting independent triple-display output
●Built with industrial-grade materials and carefully selected components for long-term stable operation

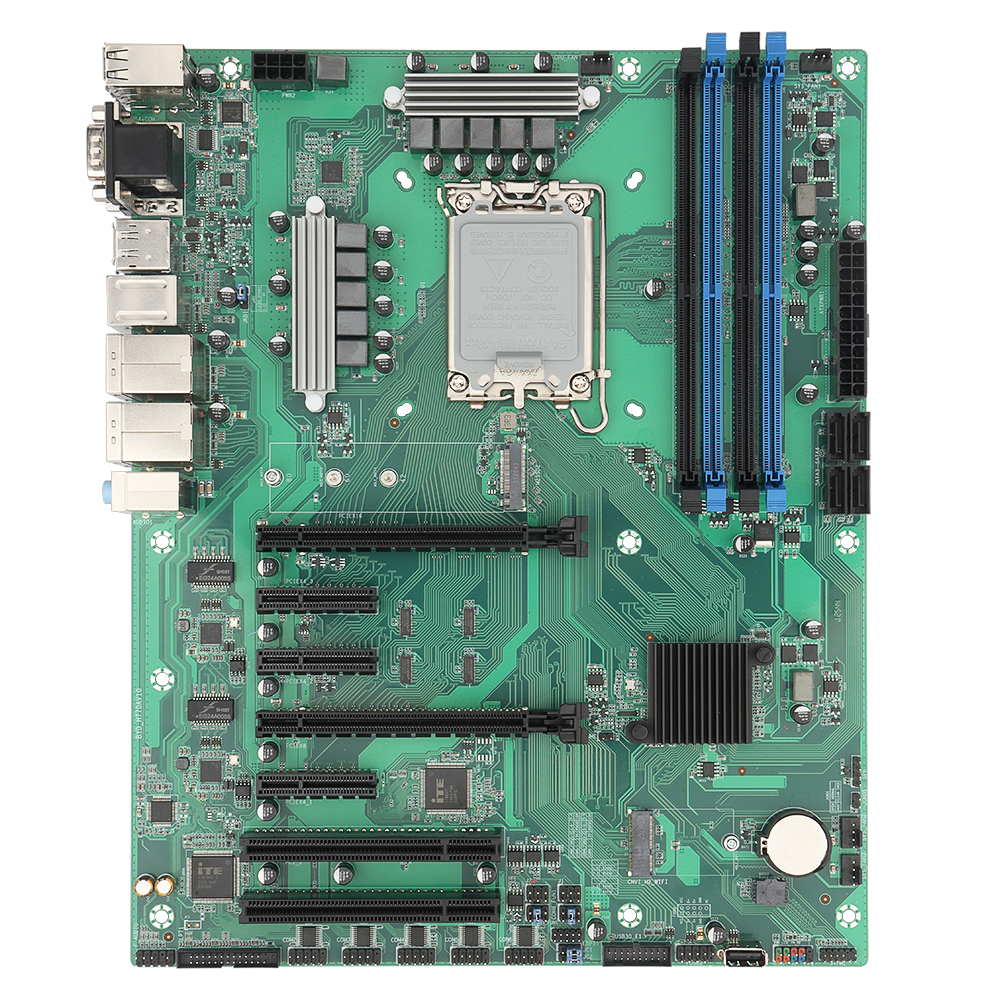

The B560-ATX is a highly integrated industrial-grade motherboard based on the AMD B550 chipset, delivering excellent computing performance and system stability. It is well suited for a wide range of applications, including automation control, digital signage, retail terminals, and industrial equipment.

Featuring a triple-level ESD protection design and standard ATX power architecture, the motherboard provides a stable and reliable operating environment. With DDR4 memory support of up to 128GB, it meets the demands of industrial systems for multitasking and high-speed data processing.

Specifications



Chipset

AMD B550

CPU Socket

Supports AMD Ryzen 3000 / 4000G / 5000 / 5000G series processors

Memory Slots

4 × 288-pin DDR4 UDIMM slots

Memory Type

Supports DDR4, up to 128GB total

Storage Interface

4 × SATA 3.0, supports RAID 0/1/10

1 × M.2 (Key-M, 2242/2260/2280, PCIe x4 Gen3 NVMe, default supports 2260)

Expansion Slots

2 × PCIe x16 (1 × PCIe x16 Gen4 or 2 × PCIe x8 Gen4)

2 × PCIe x1 (PCIe Gen3)

2 × PCI

1 × M.2 (Key-E, for Wi-Fi & BT)

Display Interface

1 × DP

1 × VGA

1 × HDMI

Supports triple independent display output

Audio Codec

HDA standard

Rear panel: Mic-in, Line-in, Line-out

LAN Controllers

2 × 10/100/1000 Mbps Ethernet

Power Connectors

ATX power connector, supports S0, S1, S4, S5

Motherboard Size / Form Factor

305 × 244 mm

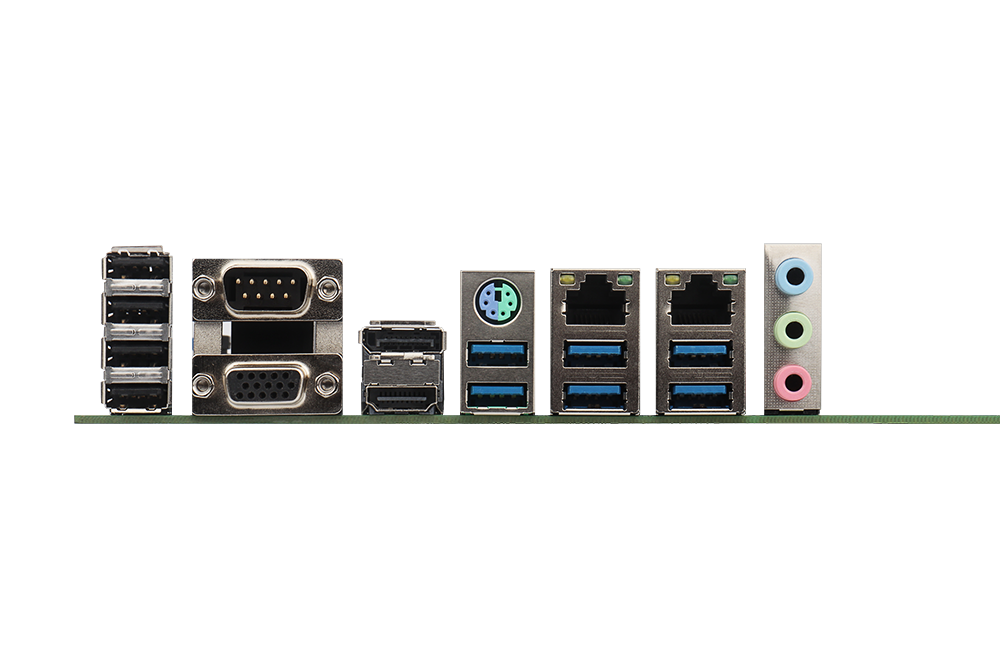

Rear & Front I/O

6 × COM (2 × RS232/422/485: COM1 external, COM2 onboard; 4 × RS232 onboard)

7 × USB 2.0 (1 external quad-port, 1 onboard Type-A, 1 × USB2.0 header)

6 × USB 3.0 (external)

1 × PS/2 keyboard/mouse

1 × 16-channel digital I/O (optional LPT)

1 × CPU fan header

3 × SYS fan headers

Operating Temperature

-10°C ~ 60°C, 5% ~ 95% RH (non-condensing)

Storage Environment

-20°C ~ 80°C, 5% ~ 95% RH (non-condensing)

Watchdog

255-level programmable seconds/minutes, supports timeout interrupt or system reset

ESD Protection

Level 3
