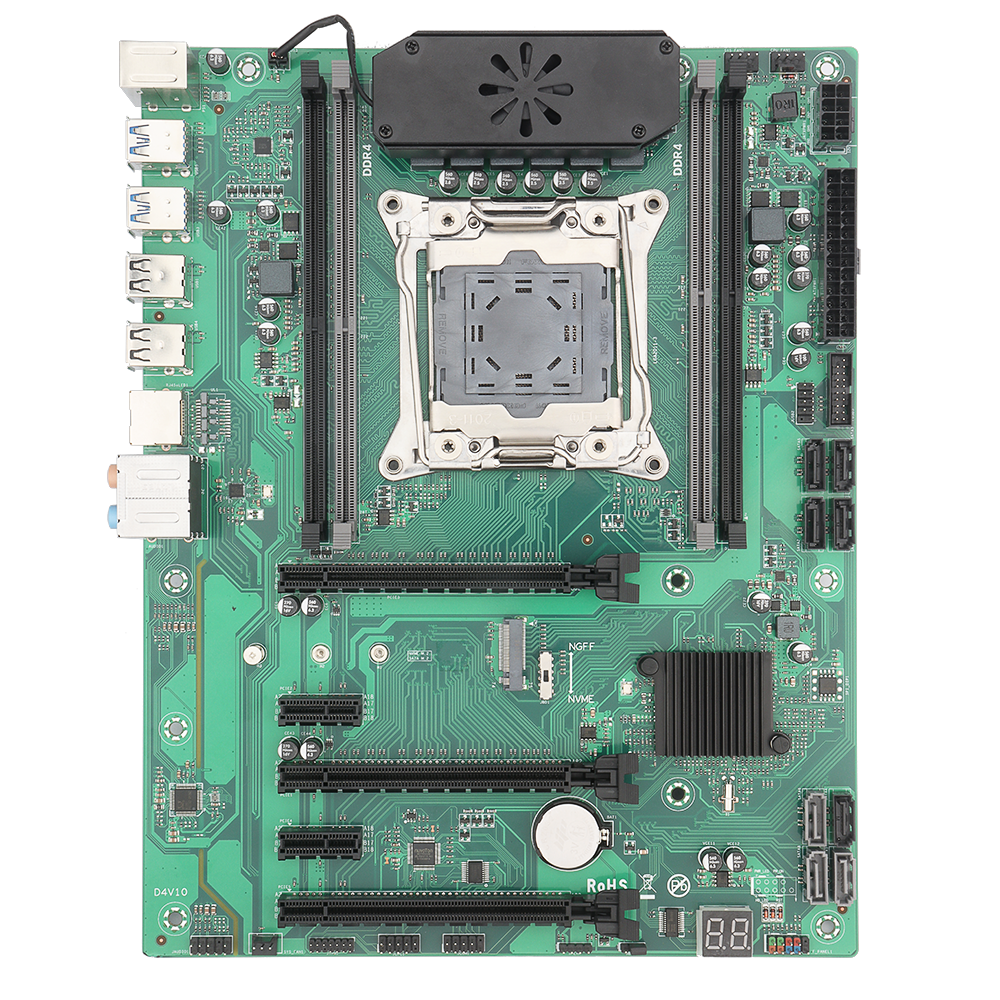

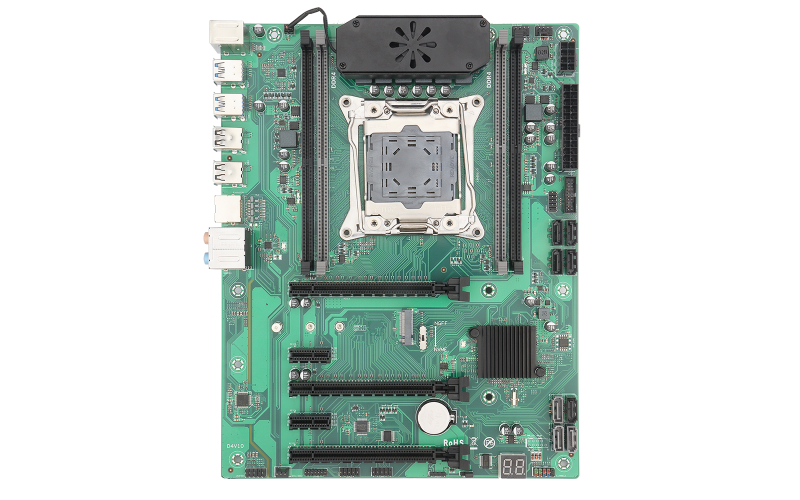

The C612-STD Workstation Motherboard supports the Intel LGA2011-3 processor platform and is engineered in accordance with stringent workstation-class standards. The motherboard is equipped with all-solid capacitors and features an active cooling module integrated into the CPU power delivery circuit, specifically designed for long-duration, high-load machine vision and image processing applications. Delivering server-grade performance and high availability, it is configured with dual Gigabit Ethernet and dual 10 Gigabit Ethernet ports to meet the demanding requirements for data throughput and system stability in high-end imaging and computational industries.
Specifications |
|
|
Chipset | Intel® C612 |
CPU Socket | Supports Intel® LGA2011-3 processors |
Memory Slots | 4 × DDR4 (dual-channel, blue slots are primary channel) |
Memory Specification | Supports DDR4 3200 / 2400 / 2133 / 1866 MHz (depending on CPU), up to 128GB |
Storage Interfaces | 5 × SATA 3.0 (6Gbps)
3 × sSATA 3.0 (6Gbps)
RAID 0/1/5/10 supported |
Expansion Slots | 2 × PCIe 3.0 x16 3 × PCIe 2.0 x1 (one full-length x16 slot) |
M.2 Slot | 1 × M.2 2280 NVMe PCIe 3.0 x4 |
Audio Codec | Realtek ALC897 HD Audio |
LAN Controller | RTL8111H / Intel I211 Gigabit Ethernet |
Power Connectors | 24-pin ATX + 8-pin CPU power |
Fan Connectors | 1 × CPU_FAN (temperature-controlled) 2 × SYS_FAN system fan connectors |
Power Design | 6-phase power module |
Motherboard Size / Form Factor | 280 × 220 mm, ATX |

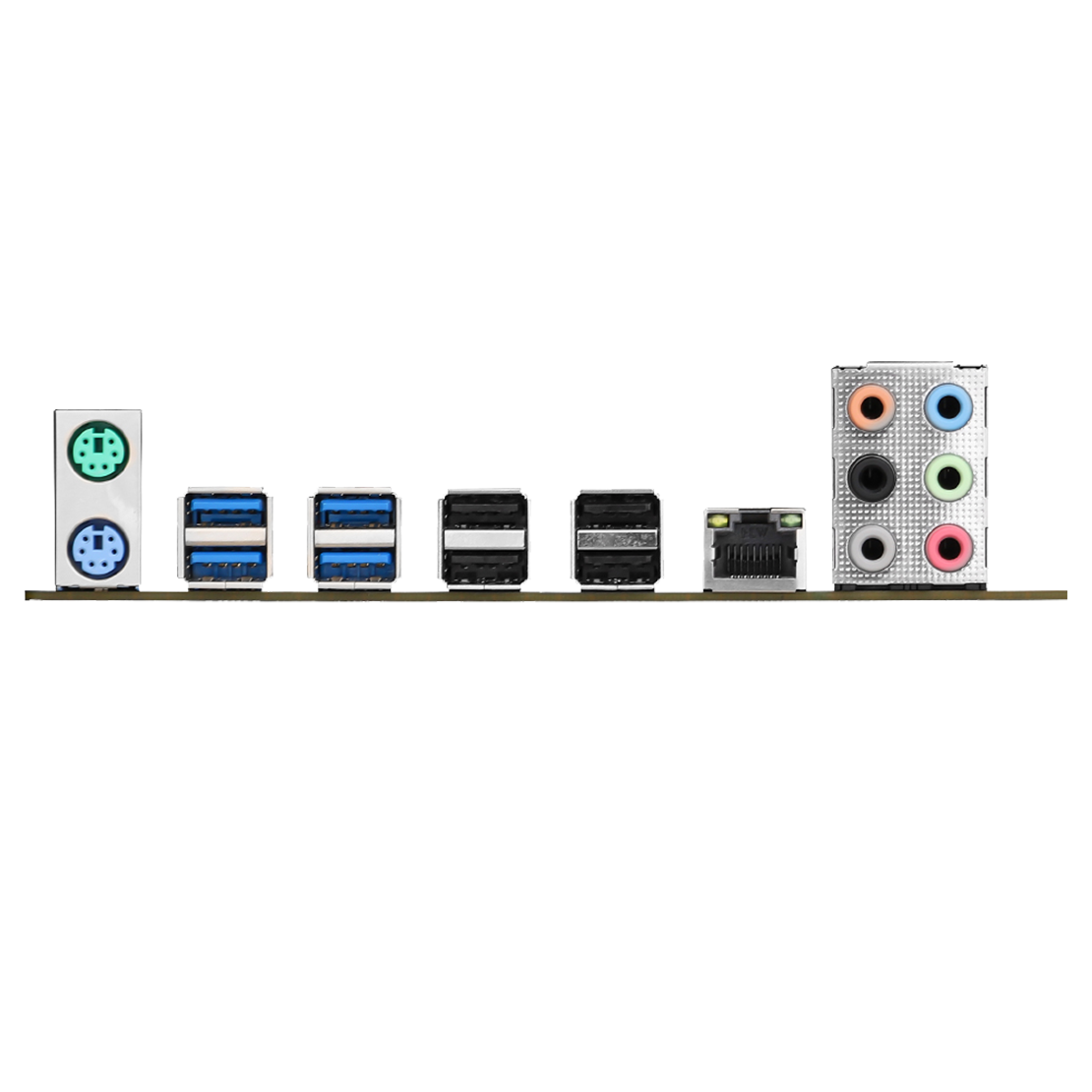

Rear I/O Panel | 4 × USB 3.2 Gen1
4 × USB 2.0
1 × RJ45 LAN
1 × 6-jack audio interface |
Front I/O Headers | 1 × USB 3.2 Gen1 header
1 × USB 2.0 header
1 × Audio header
1 × COM header
1 × CMOS clear jumper
1 × JLPC header
1 × Buzzer (SPK) header
1 × Power/Reset header
1 × TPM 2.0 header
1 × DEBUG card header |
OS Support | Windows 7 / Windows 10 / Windows 11 |
Supported Features | Auto Power-On
RTC Scheduled Power-On
Wake-on-LAN
IPv4 / IPv6 PXE Boot
Smart CPU Fan Control |
|
|
|
|
