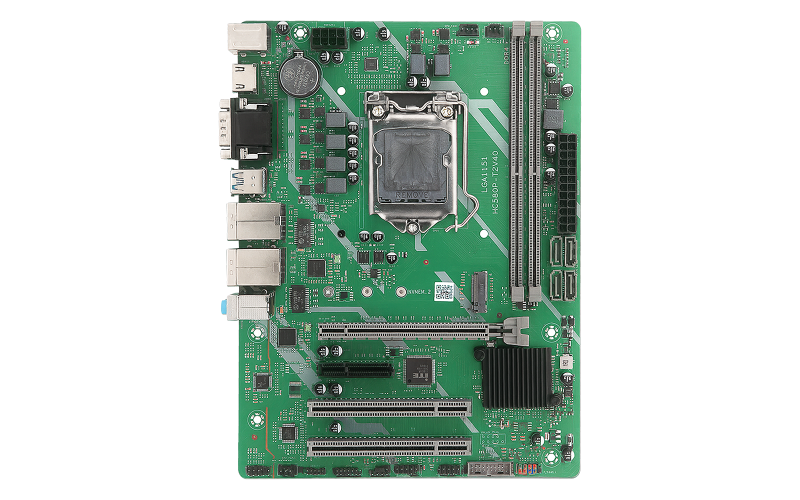

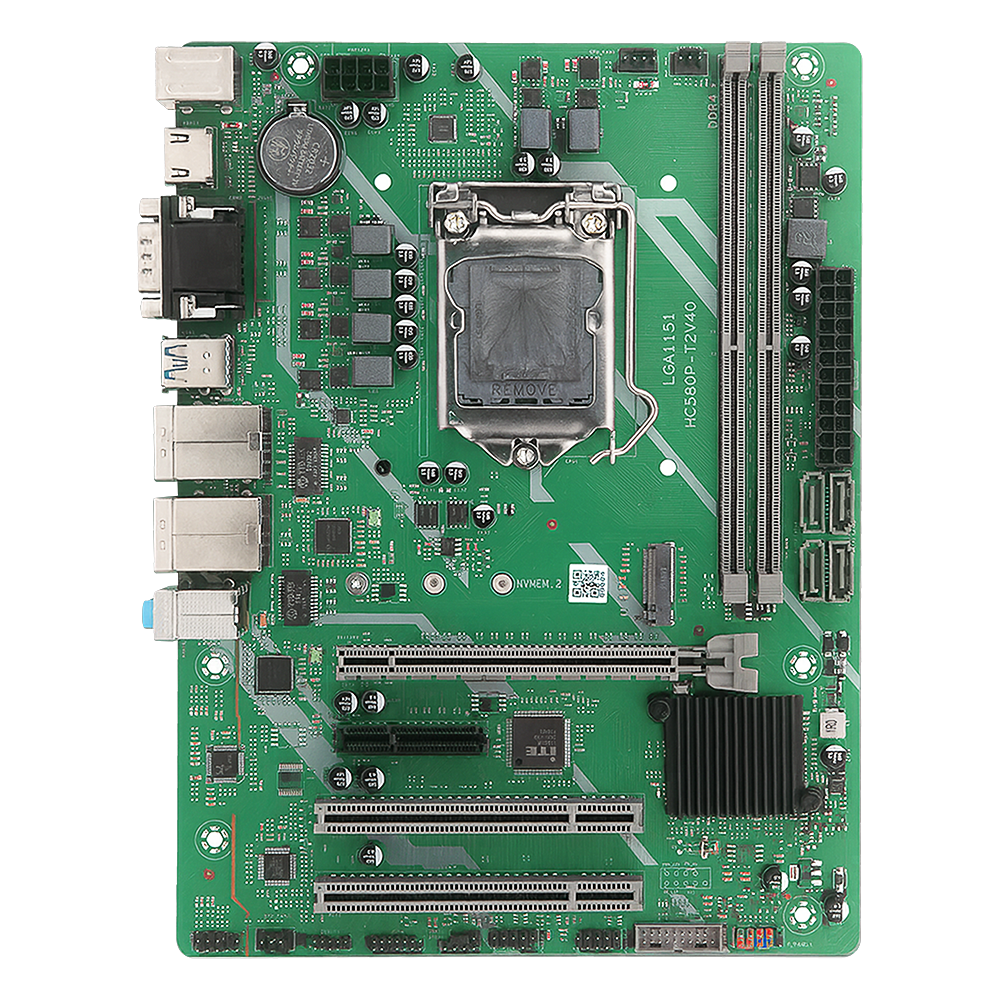

Industrial Motherboard H31x STD
Industrial Motherboard H31x STD

Industrial Motherboard H31x STD

● Equipped with Intel® H-Series chipset, supporting 6th, 7th, 8th, and 9th generation processors
● Dual-channel DDR4 memory slots, supporting up to 32GB
● Onboard dual Gigabit LAN (Intel® I211) for stable networking and high compatibility
● Provides PCIe x16, PCIe x4, and PCI expansion slots for diverse applications
● Supports M.2 2280 NVMe storage, delivering enhanced data access performance
● Supports HDMI 2.0 and VGA display outputs for seamless integration of new and legacy devices
● Multiple USB / COM / GPIO / TPM / DEBUG pin-headers for high expansion flexibility
● Supports Power-on Restore, Auto-Power-On, Wake-on-LAN, and Diskless Boot
● Built with industrial-grade components for long-term, stable operation

The H31x STD is an industrial-grade, highly integrated motherboard built on the Intel® H310 chipset. It supports 8th and 9th generation Intel Core processors on the LGA1151 platform, delivering excellent computing performance and system stability. It is well suited for a wide range of applications, including automation control, digital signage, retail terminals, and industrial equipment.


The motherboard features a 4-layer PCB design and a 6-phase power architecture to ensure stable and long-term operation. With dual-channel DDR4 memory slots supporting up to 64GB, it fully meets the multitasking and high-speed processing requirements of industrial systems. Equipped with a comprehensive set of I/O interfaces and multiple expansion slots, including PCI, PCIe and M.2, the board provides strong flexibility for system integration.

Specifications



Chipset

Intel® H-Series Chipset

CPU Socket

Supports Intel® LGA1151 processors (6th / 7th / 8th / 9th Generation)

Memory Slots

2 × DDR4 DIMM Slots

Memory Specification

Supports dual-channel DDR4 3200 / 2933 / 2666 / 2400 / 2133 / 1866 MHz

(Depending on CPU specifications), up to 64GB

Storage Interfaces

4 × SATA 3.0 (6Gbps) ports

Expansion Slots

1 × PCI Express 3.0 x16

1 × PCI Express 2.0 x4

2 × PCI Slots

M.2 Slot

1 × M.2 2280 NVMe PCIe x1 (PCIe 2.0)

Audio Codec

Realtek ALC897 High Definition Audio

LAN Controller

Dual Intel® I211 Gigabit Ethernet

Power Connectors

24-pin ATX + 8-pin CPU power

Fan Connectors

1 × CPU_FAN with temperature control

2 × SYS_FAN system fan connectors

Power Design

6-phase power module

PCB Layers

6-layer PCB

Motherboard Size / Form Factor

240 × 180 mm, M-ATX form factor

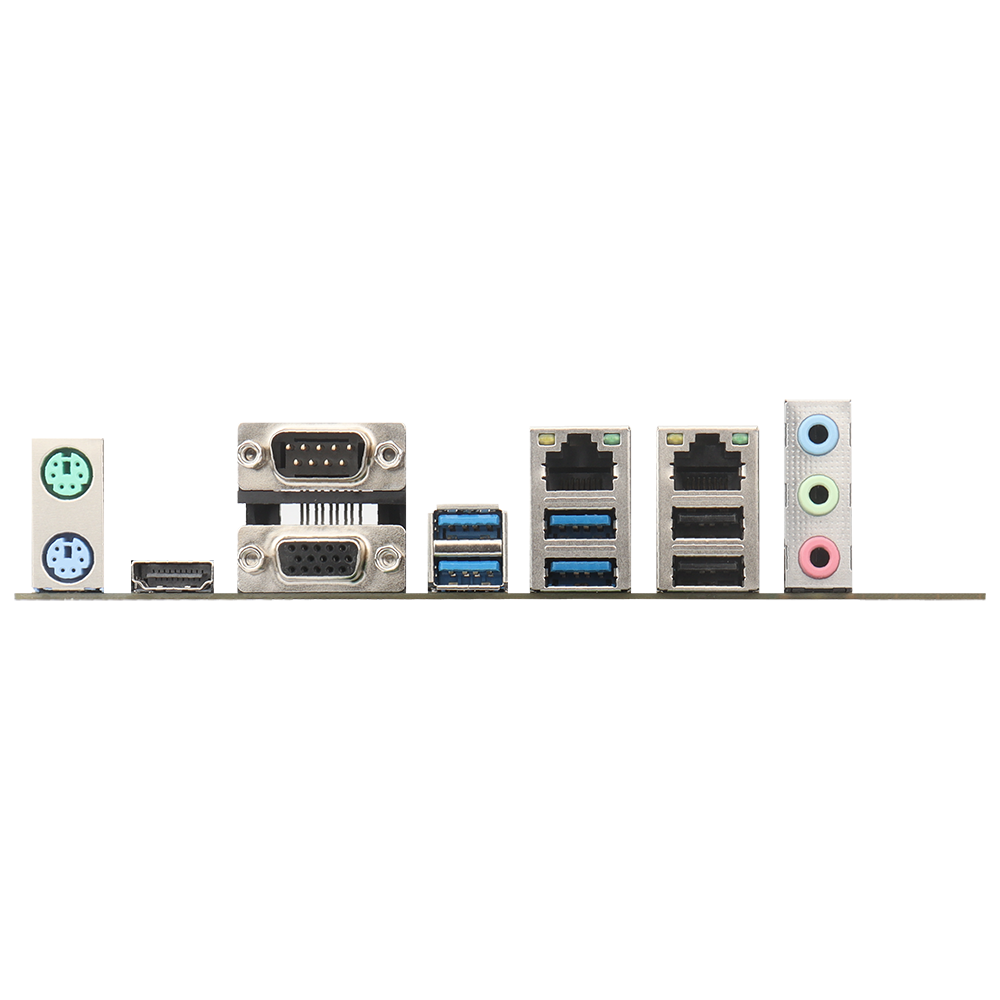

Rear I/O Panel

4 × USB 3.0

2 × USB 2.0

1 × VGA

1 × HDMI 2.0

1 × COM port

1 × RJ45 LAN

1 × 3-jack audio (Line-out / Line-in / Mic-in)

1 × PS/2 combo port (Keyboard/Mouse)

1 × JVGA header

Front I/O Headers

2 × USB 2.0 headers

1 × USB 3.0 header

1 × Front audio header

1 × DEBUG diagnostic header

1 × JBAT CMOS reset header

1 × SPEAKER buzzer header

1 × TPM 2.0 header

1 × Power/Reset control header

OS Support

Windows 7 / Windows 10 / Windows 11

Supported Features

Auto Power-On (Power-on Restore)

RTC Scheduled Power-On

Wake on LAN

IPv4 / IPv6 PXE Diskless Boot

Smart CPU fan temperature control

AMI UEFI BIOS
