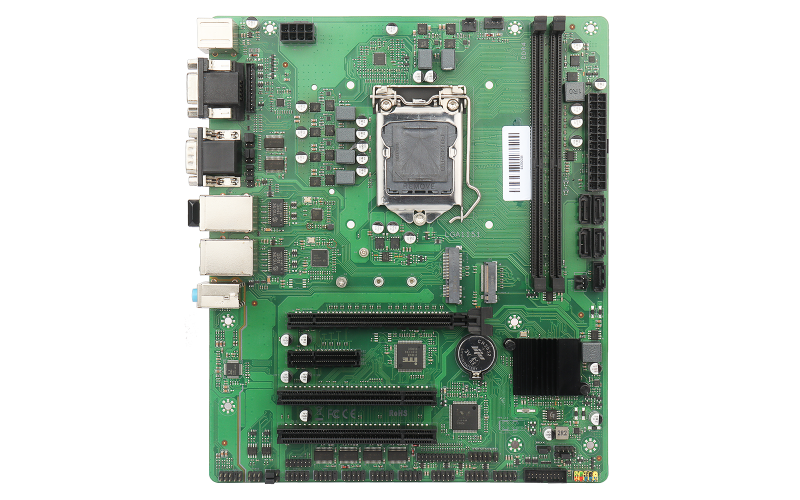

Industrial Motherboard H31x-IND GK
Industrial Motherboard H31x-IND GK

Industrial Motherboard H31x-IND GK

●Compatible with Intel® 6th to 9th Generation LGA1151 platform CPUs, addressing diverse performance requirements
●Supports dual-channel DDR4 2133/2400/2666 MHz memory, with a maximum capacity of up to 64GB, ensuring stable and high-speed data processing
●Supports VGA and HDMI display outputs, configurable for dual-display or single-display operation to meet various visualization needs
●Equipped with dual Gigabit Ethernet ports, suitable for high-speed data transmission and network redundancy applications
●Provides 1× M.2 (SSD), 1× mSATA, and 5× SATA interfaces for flexible and high-efficiency storage configurations
●Offers up to 14× USB ports and 6× RS232 ports (COM2 and COM3 support RS485), enabling easy connection of a wide range of peripherals
●Includes 1× bidirectional GPIO, TPM 2.0 security module header, and chassis intrusion detection header to enhance system security and remote monitoring capabilities
●Features 1× PCIe x16, 1× PCIe x4, and 2× PCI slots to support a wide variety of expansion cards
●Supports an operating temperature range of -10°C to 60°C, ensuring reliable operation in demanding industrial environments

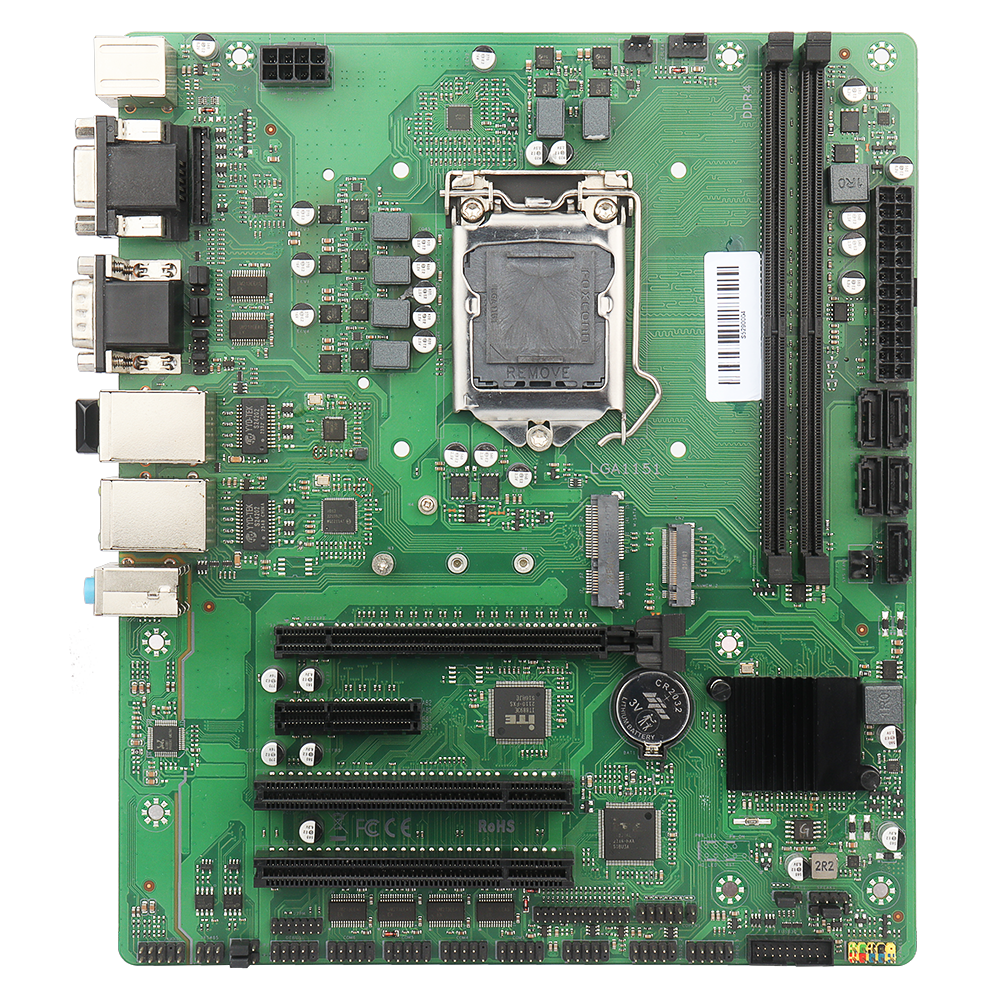

The H31x IND GK is a high-performance, industrial-grade motherboard in an M-ATX form factor, supporting Intel® 6th, 7th, 8th, and 9th Generation Skylake, Kaby Lake, and Coffee Lake processors. Designed for high expandability and long-term stability, it is ideal for embedded applications such as digital signage, communication control, medical equipment, industrial automation, financial terminals, and cloud-based terminals. With extensive I/O connectivity and wide-temperature operation support, it meets the system integration requirements of harsh industrial environments.


Specifications



Chipset

Intel® H-Series Chipset

CPU Socket

Compatible with Intel® 6th–9th Gen processors

Memory Slots

2 × 288-pin DDR4 DIMM (up to 64GB)

Memory Specification

Dual-channel DDR4 3200/2666/2400/2133 MHz (depending on CPU), up to 64GB total

Storage Interfaces

5 × SATA ports

Expansion Slots

1 × mSATA slot

1 × PCIe x16

1 × PCIe x4

2 × PCI slots

M.2 Slot

1 × M.2 2280 (NVMe, PCIe x1, PCIe 2.0)

Audio Codec

Realtek ALC897, supports Line-Out, Mic-In, Line-In

LAN Controller

Dual Intel® Gigabit Ethernet (I219V & I211AT)

Power Connectors

24-pin + 8-pin ATX power

Fan Connectors

1 × 4-pin CPU fan (CFAN1)

2 × 3-pin system fans (SFAN1)

Power Design

6-phase power module

PCB Layers

6-layer PCB

Motherboard Size / Form Factor

215 × 250 mm, Micro-ATX

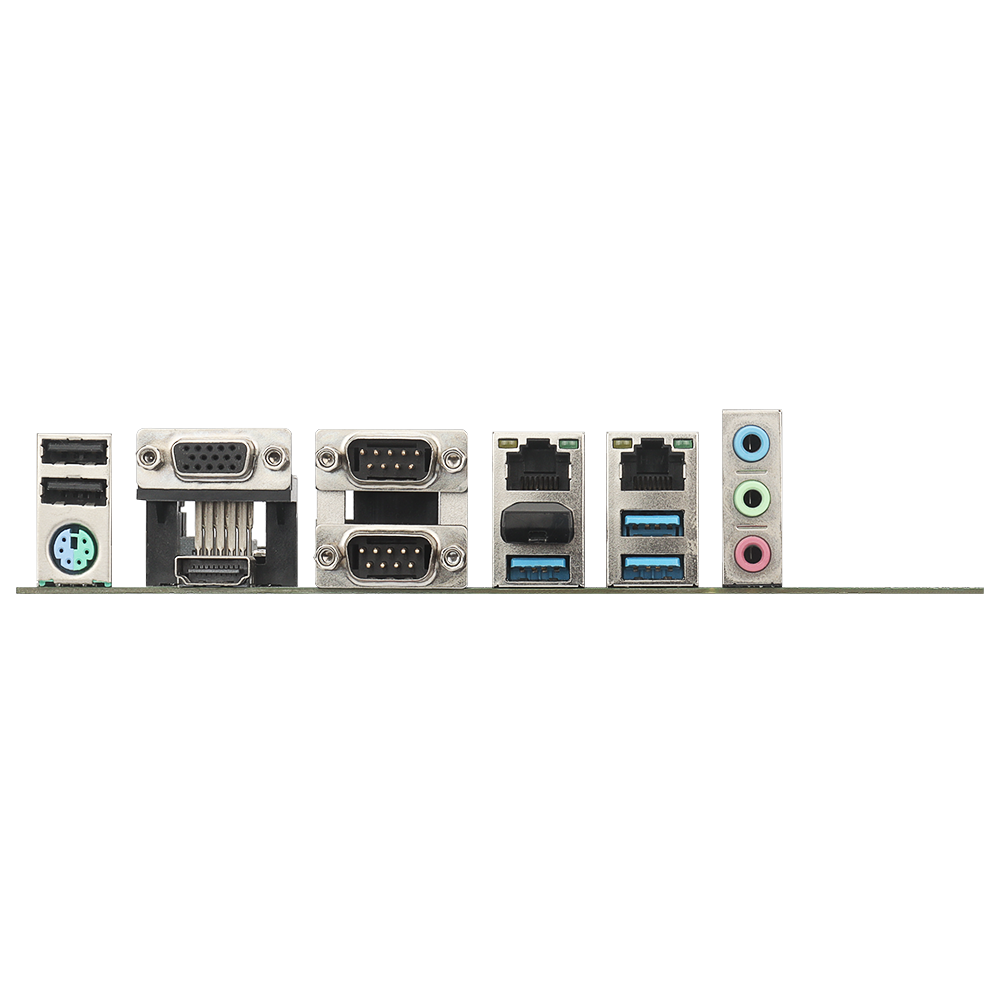

Rear I/O Panel

2 × USB 2.0

2 × USB 3.0

2 × RJ45 LAN

1 × RJ45 Management Port

1 × VGA

1 × COM

Front I/O Headers

1 × USB 2.0 header

1 × USB 3.0 header

1 × USB 3.0 port

1 × TPM header

1 × COM header

1 × Motherboard buzzer

1 × Diagnostic card header

1 × JPI2C1 header

1 × JVR1 header

1 × JSRBY1 header

1 × JINTR header

1 × JRTC1 header

1 × JUID_BTN header

1 × JNVMEK1 header

1 × JSSGPIO2 header

1 × JTAG header

1 × JUART header

1 × JUID1 header

1 × JFP1 header

Operating Temperature

-10°C to 60°C (wide temperature range)

OS Support

Windows 10 / Windows 11 / Linux

Supported Features

Auto Power-On / RTC Scheduled Power-On / Wake-on-LAN

IPv4 / IPv6 PXE Diskless Boot

Smart CPU fan control

AMI UEFI BIOS
