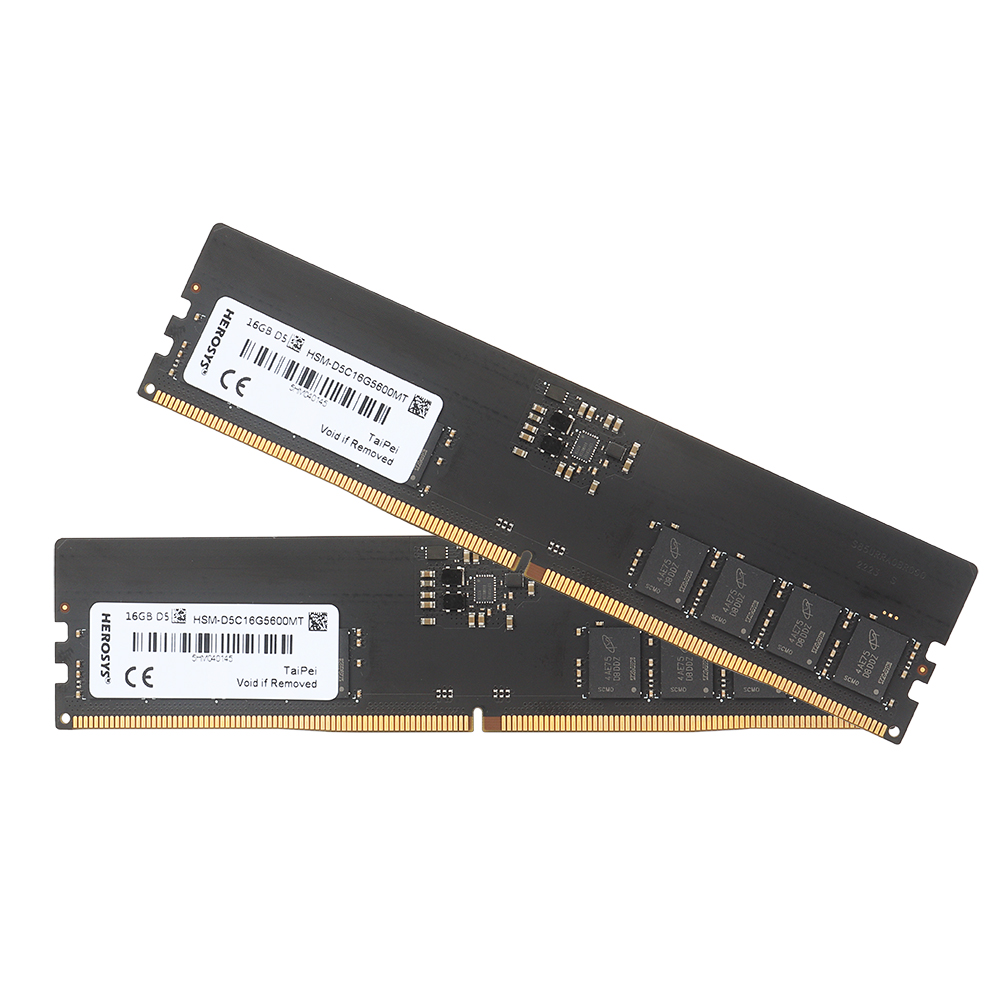

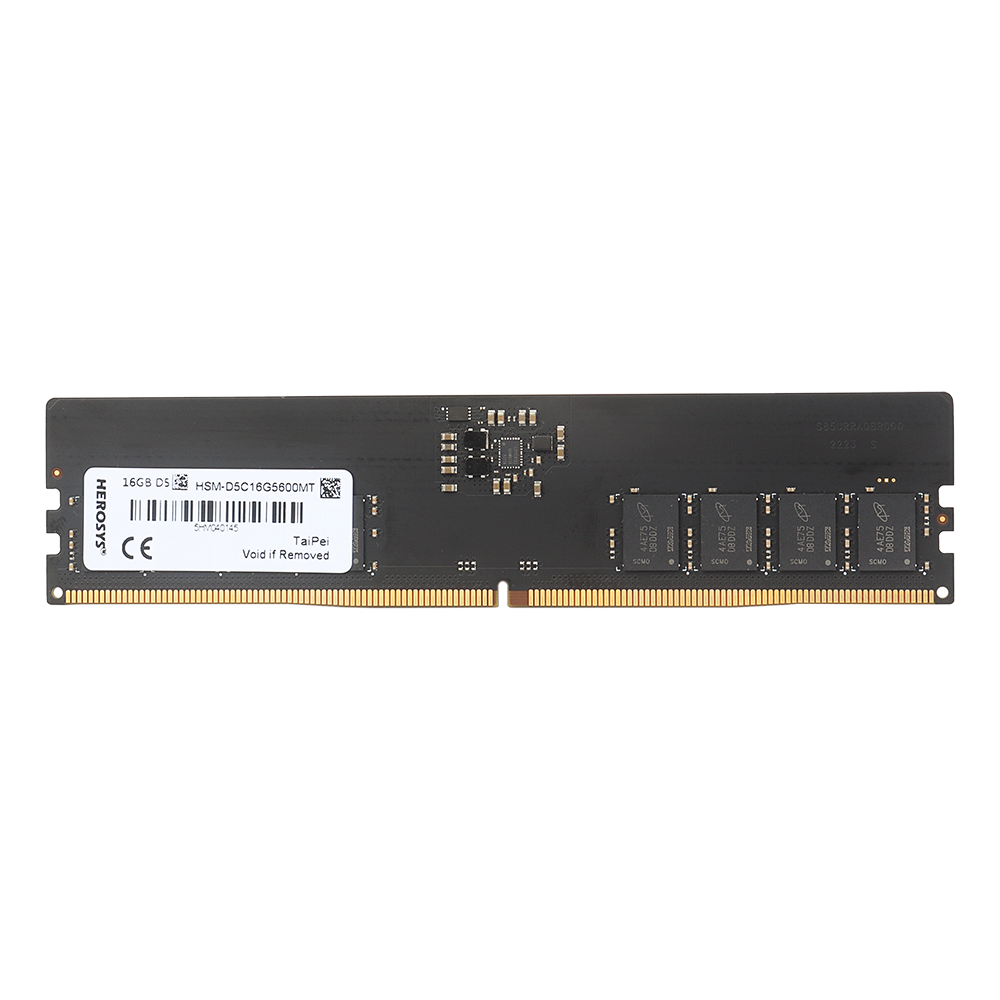

The HEROSYS next-generation DDR5 UDIMM (Unbuffered DIMM) industrial memory module is designed for high-performance, high-stability, and low-power industrial control systems and embedded applications. It utilizes premium DDR5 DRAM chips from leading global brands such as Micron, SK hynix, and Samsung, ensuring exceptional quality and compatibility.
Operating at a JEDEC-standard frequency of 5600 MT/s (CL46), the module significantly enhances data transfer efficiency to meet the demands of next-generation high-performance computing. Built-in On-die ECC (Error Correction Code) technology automatically corrects single-bit errors, greatly improving data reliability and system stability—ideal for long-term operation in industrial environments.
The HEROSYS DDR5 module also integrates an on-DIMM Power Management IC (PMIC) with 5V input support, enabling precise power control and efficient power load management. This contributes to better signal integrity and system compatibility, making it suitable for desktop PCs, industrial computers, and embedded systems.
Features
Compliant with JEDEC standard frequency of 5600 MT/s (CL46)
Equipped with high-quality DDR5 DRAM chips from top-tier manufacturers (Micron / SK hynix / Samsung)
Integrated on-DIMM Power Management IC (PMIC) with 5V input support
On-die ECC (Error Correction Code) mechanism for automatic single-bit error correction
288-pin DDR5 UDIMM (Unbuffered Dual In-Line Memory Module)
Operating voltages: VDD = VDDQ = 1.1V, VPP = 1.8V
32 internal banks architecture: 8 bank groups × 4 banks
RoHS compliant (lead-free)
Halogen-free
Optional conformal coating / underfill
Optional anti-sulfuration protection
