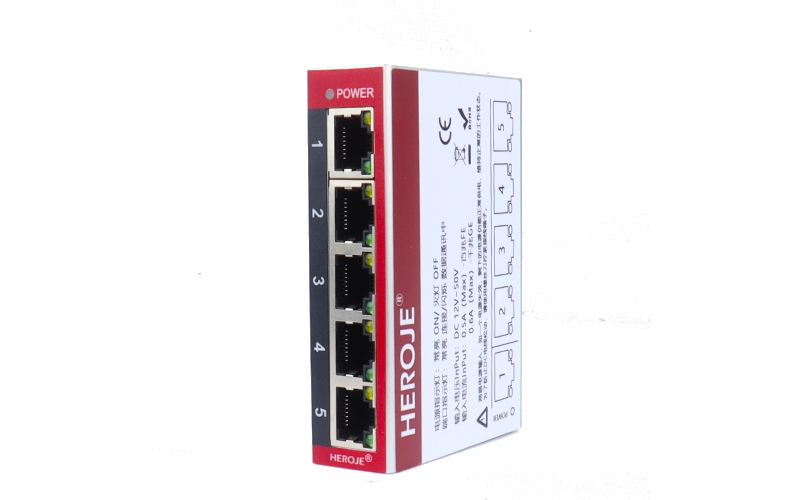

HEROSYS Industrial Ethernet Switches are designed for reliable and stable operation in harsh industrial environments, offering a cost-effective and efficient networking solution. These switches support IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards, with transmission speeds of 10/100/1000 Mbps.
HEROSYS Industrial Ethernet Switches are designed for reliable and stable operation in harsh industrial environments, offering a cost-effective and efficient networking solution. These switches support IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards, with transmission speeds of 10/100/1000 Mbps.
Features full-duplex/half-duplex modes, auto-negotiation, auto MDI/MDIX crossover, and auto-sensing capabilities. The switches support redundant 12/24/48 VDC (12 – 52 VDC) power input, allowing dual DC power sources to be connected simultaneously. With a wide operating temperature range of -40°C to 75°C, IP30-rated metal housing, and robust construction, they are built to withstand demanding industrial conditions.
Designed for easy DIN rail mounting and control cabinet integration, the plug-and-play industrial Ethernet switches are equipped with an IP30-rated metal enclosure and LED indicators, providing a simple and reliable solution for industrial networking.
| Model | SW-CF05/SW-CF08 | SW-CG05/SW-CG08 | |
Type | 100M Switch | Gigabit Switch | |
| Standard | IEEE 802.3，IEEE 802.3u，IEEE 802.3i | IEEE 802.3，IEEE 802.3u，IEEE 802.3ab，IEEE 802.3i | |
| Port | RJ45 | 5FE/8FE | 5GE/8GE |
| Power Input | DC input voltage | 12~52V VDC | 12~52V VDC |
| Input current | 0.5A（MAX） | 0.6A（MAX） | |
| Reverse connection protection | Support | Support | |
| Performance | Storage and forwarding | Support | Support |
| MAC address table | 2K/4K | 2K/4K | |
| Structure | IP | IP30 | IP30 |
| Installation method | Guide rail | Guide rail | |
| Product size | 5 Ports：104*74*23 8 Ports：142*102*38 | 5 Ports：104*74*23 8 Ports：142*102*38 | |
| Temperature | Working temperature | -40~75℃ | -40~75℃ |
| Humidity | Working humidity | 10%RH~90%RH, non-condensing | 10%RH~90%RH, non-condensing |
